HJY-FQ09A Four Shaft Medical Tape Slitting Rewinding Machine | Surgical Tape Making Machine

Short Description:

Suitable for slitting rewinding medical tape, surgical tape, sports tape, etc.


Product Detail

Product Tags

Specifications

 WORKING WIDTH   1020 mm
 UNWIND DIAMETER   1000 mm
SLITTING WIDTH  12mm – 1020 mm
REWIND PAPER CORE I.D  1”
REWIND DIAMETER 120 mm
SLITTING KNIFE  Air score blade/zigzag air score blade/ razor blade (optional)
MACHINE SPEED  180 m/min
ACCESSORIES Core loading & unloading device, aluminum mould for size setting



Features

1. Full-automatic four-shaft exchange is adopted and the efficiency is improved.
2. Japan Mitsubishi PLC control system with 7” touch panel operation.
3. Automatic shaft exchange: once the rewinding operation is finished, the machine will automatically perform shaft exchanges for convenient and efficient operations.
4. Core loading machine and one set of size setting alu. mould available with the slitting machine

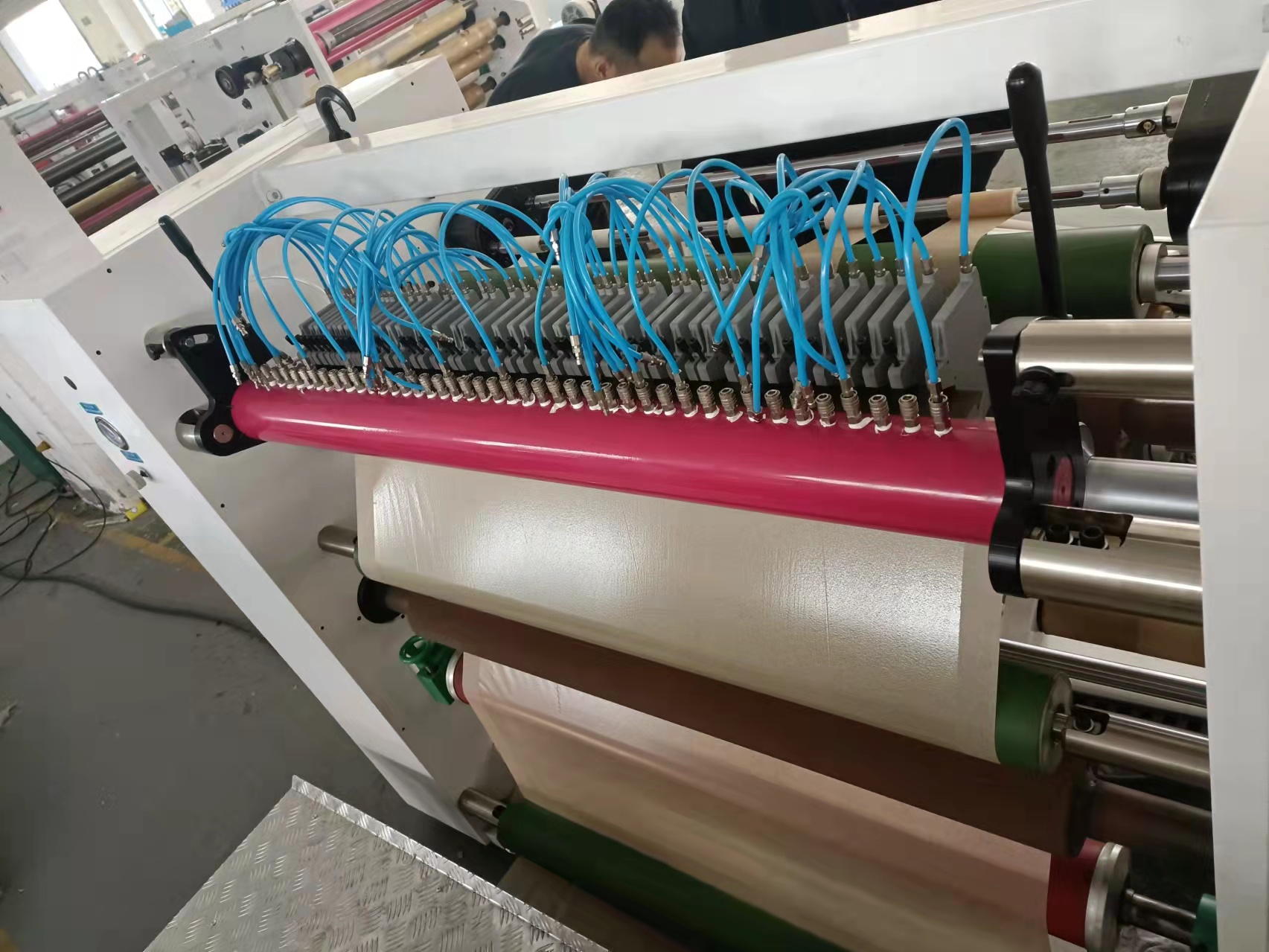

5. Slitting tool: regular air blades and zigzag type air blades also available. The knife positions can be adjusted in left/right directions and the pressure of the air blades can be adjusted to suit tape material variation.
6. Spool trim winding system is used for edge trimming collecting.
7. Rewind shaft: customer can choose 1” air shafts or traditional nylon sleeve type rewind shafts

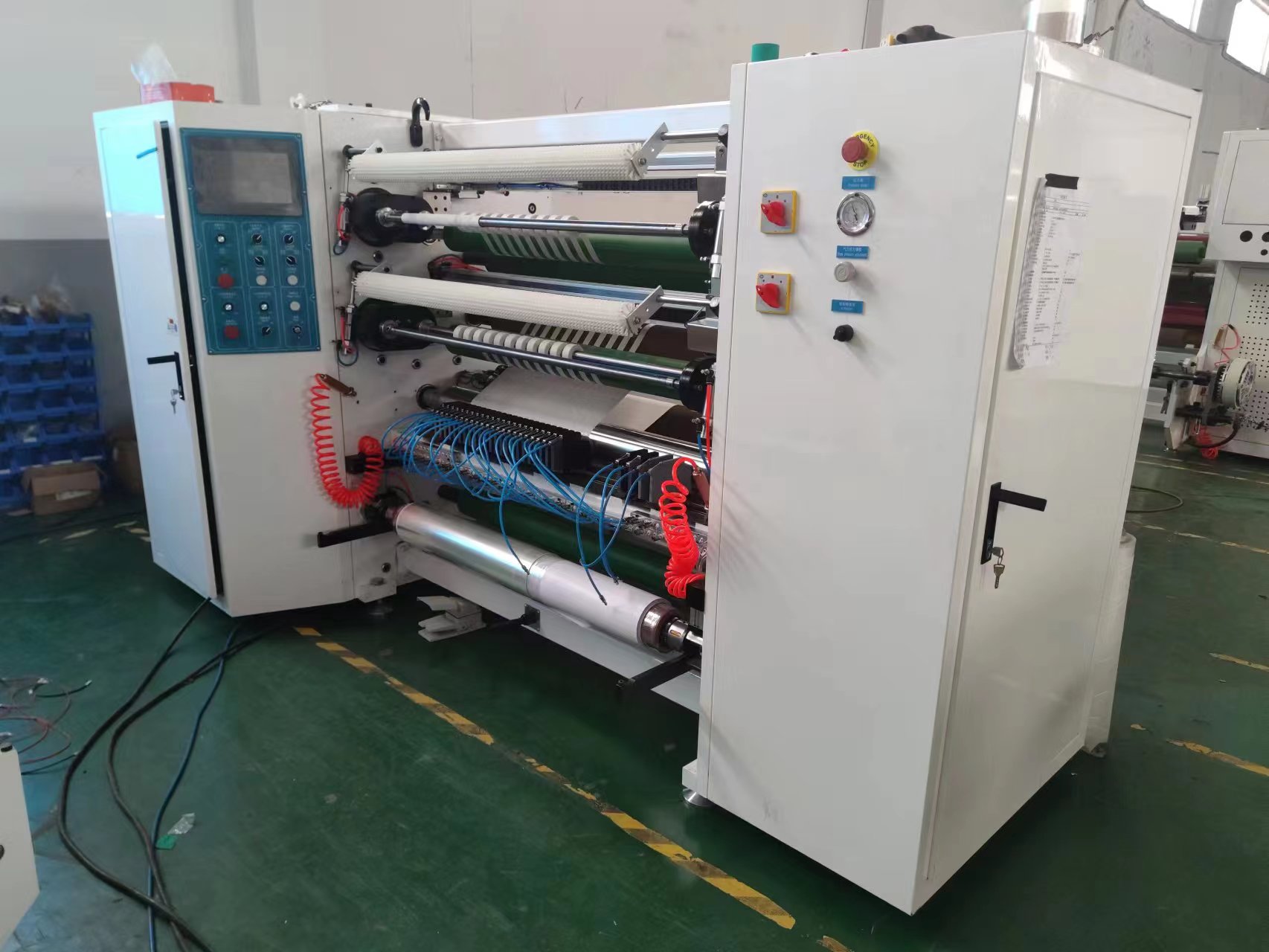

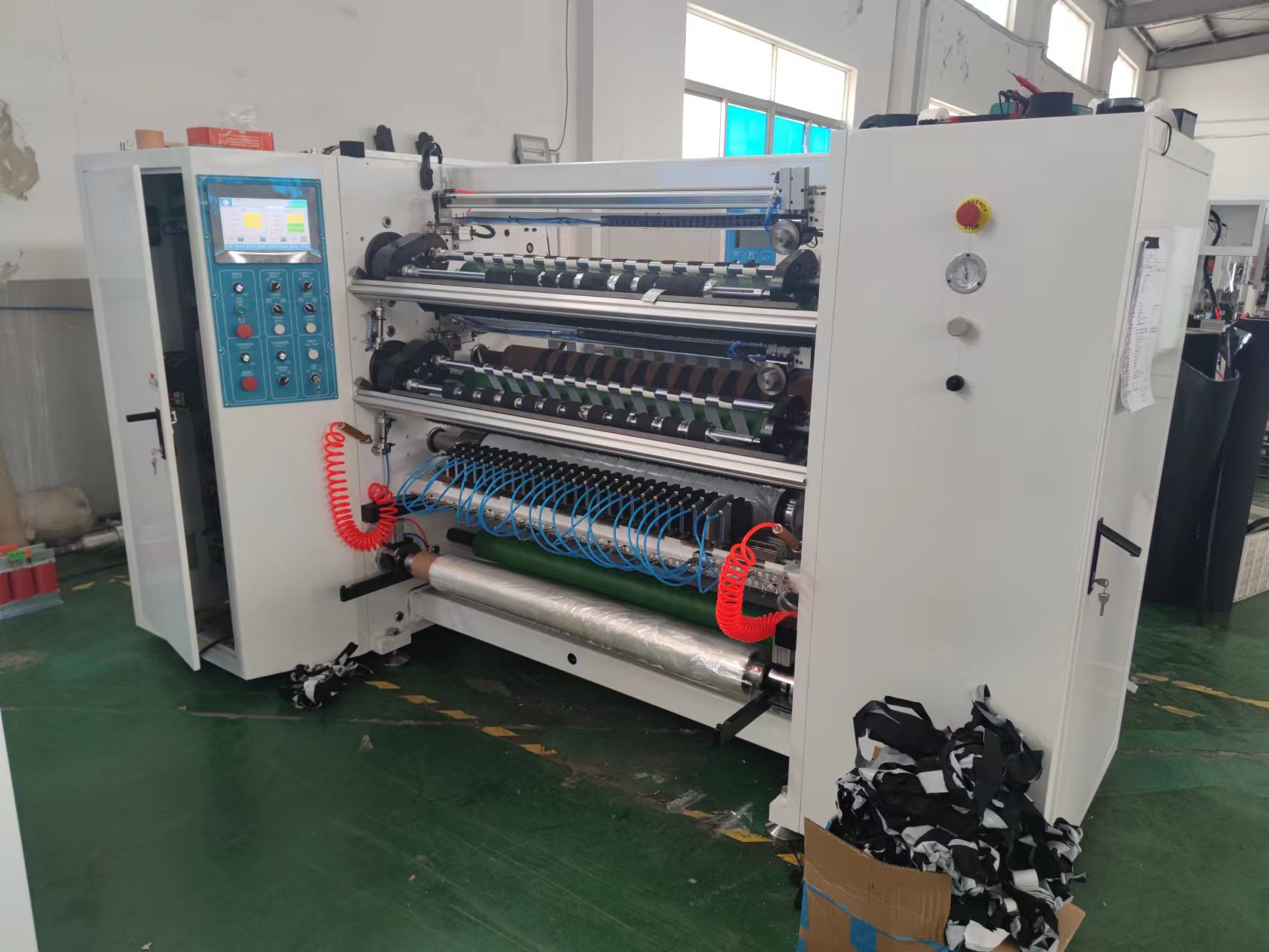

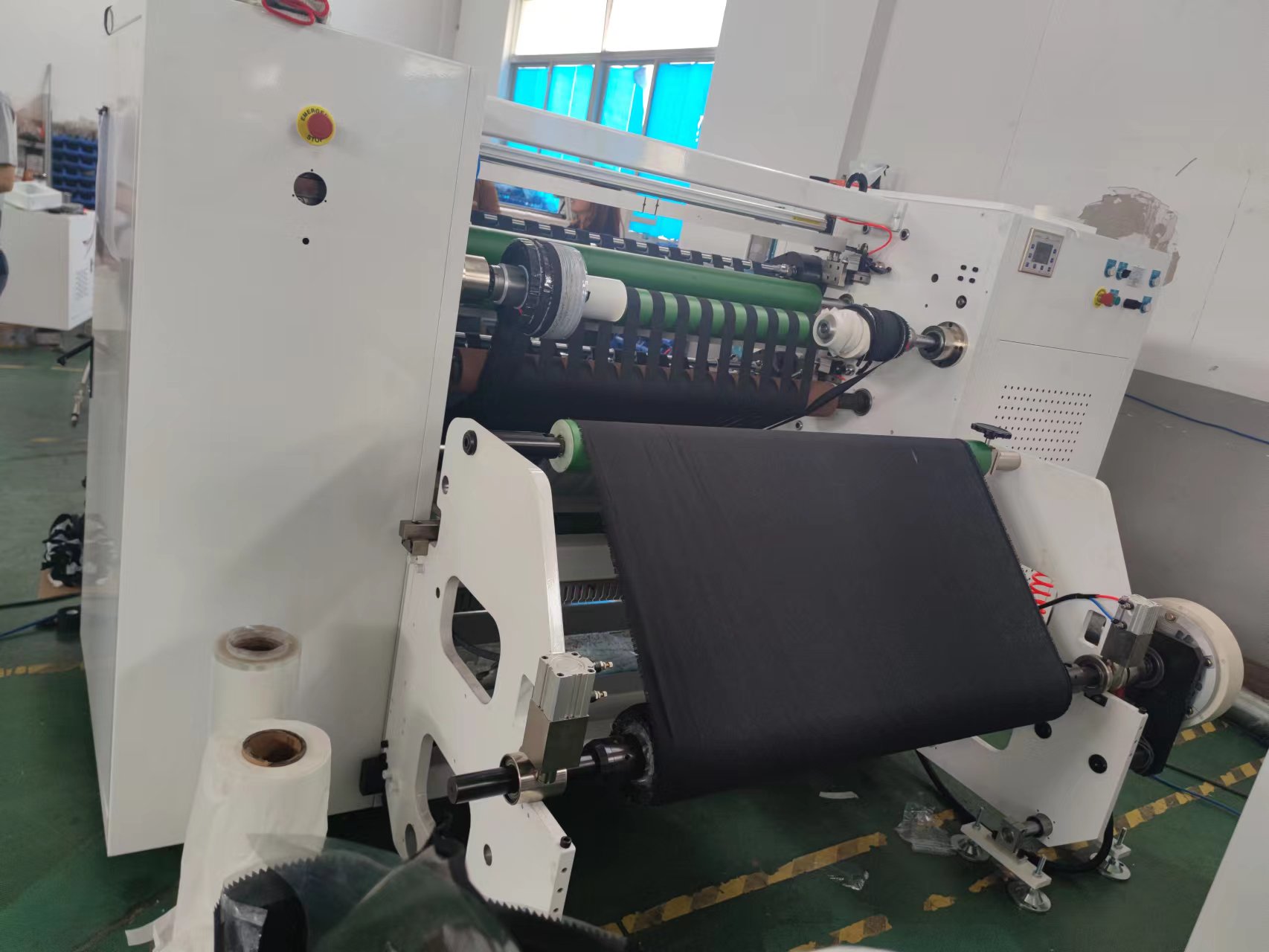

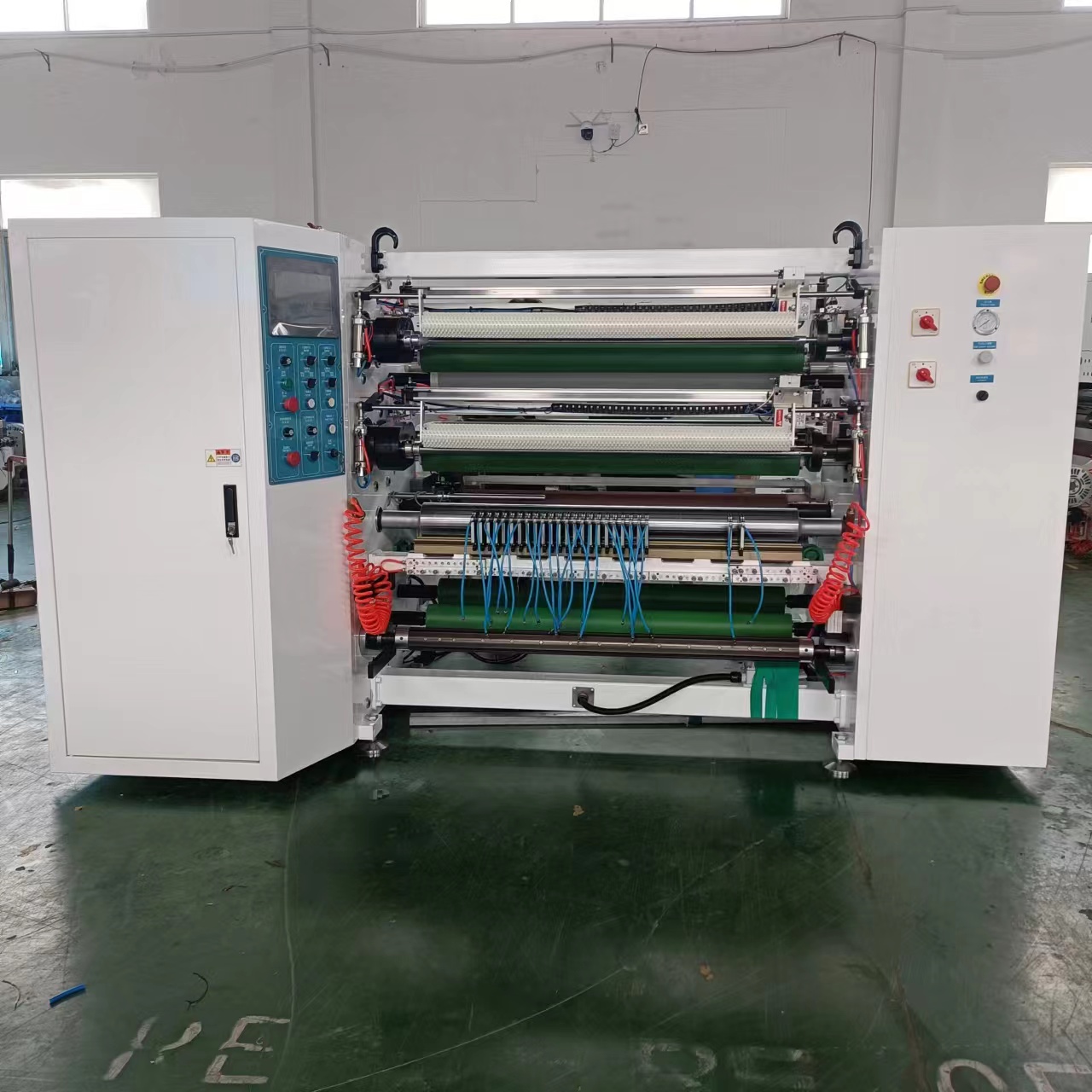

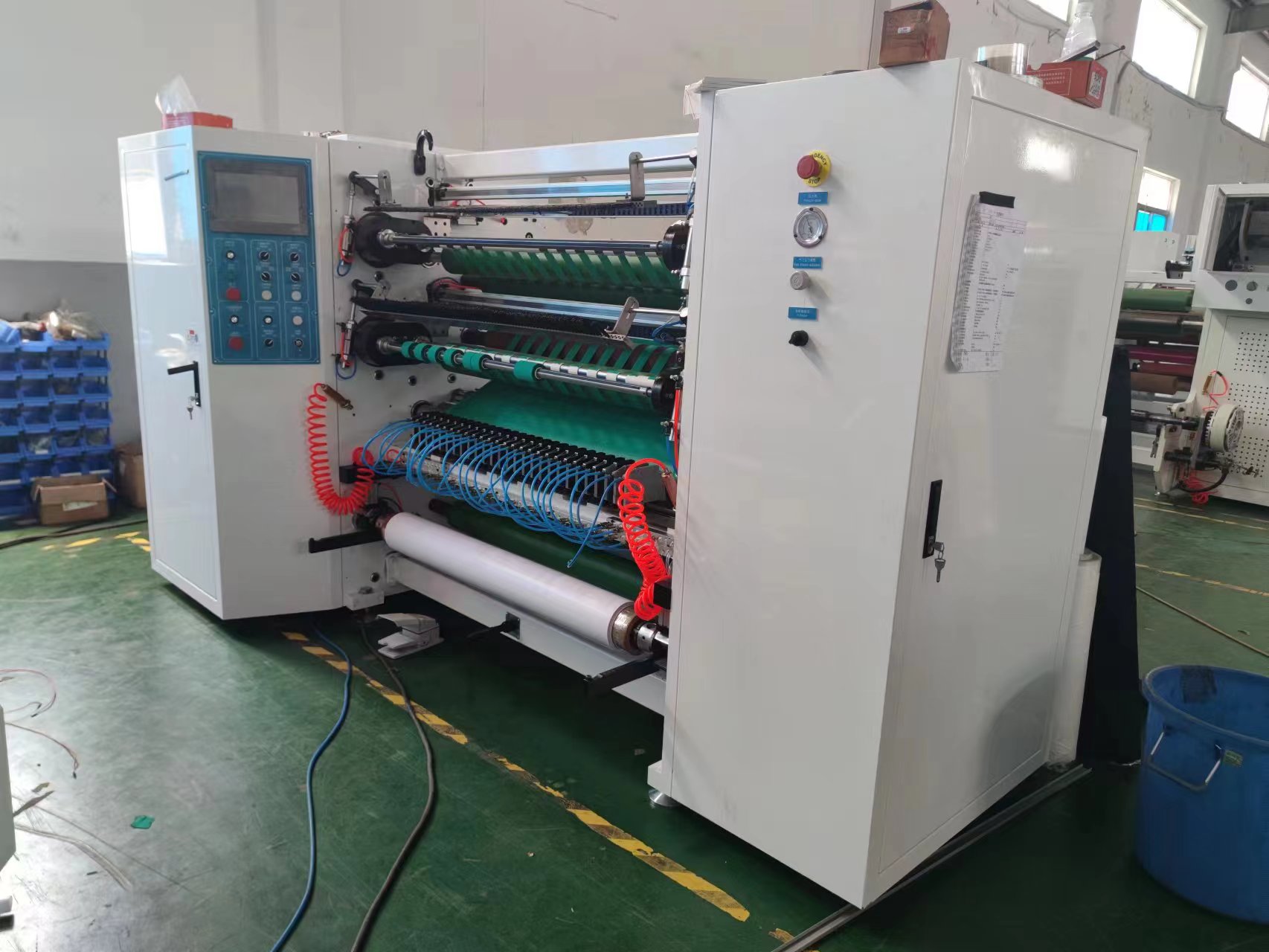

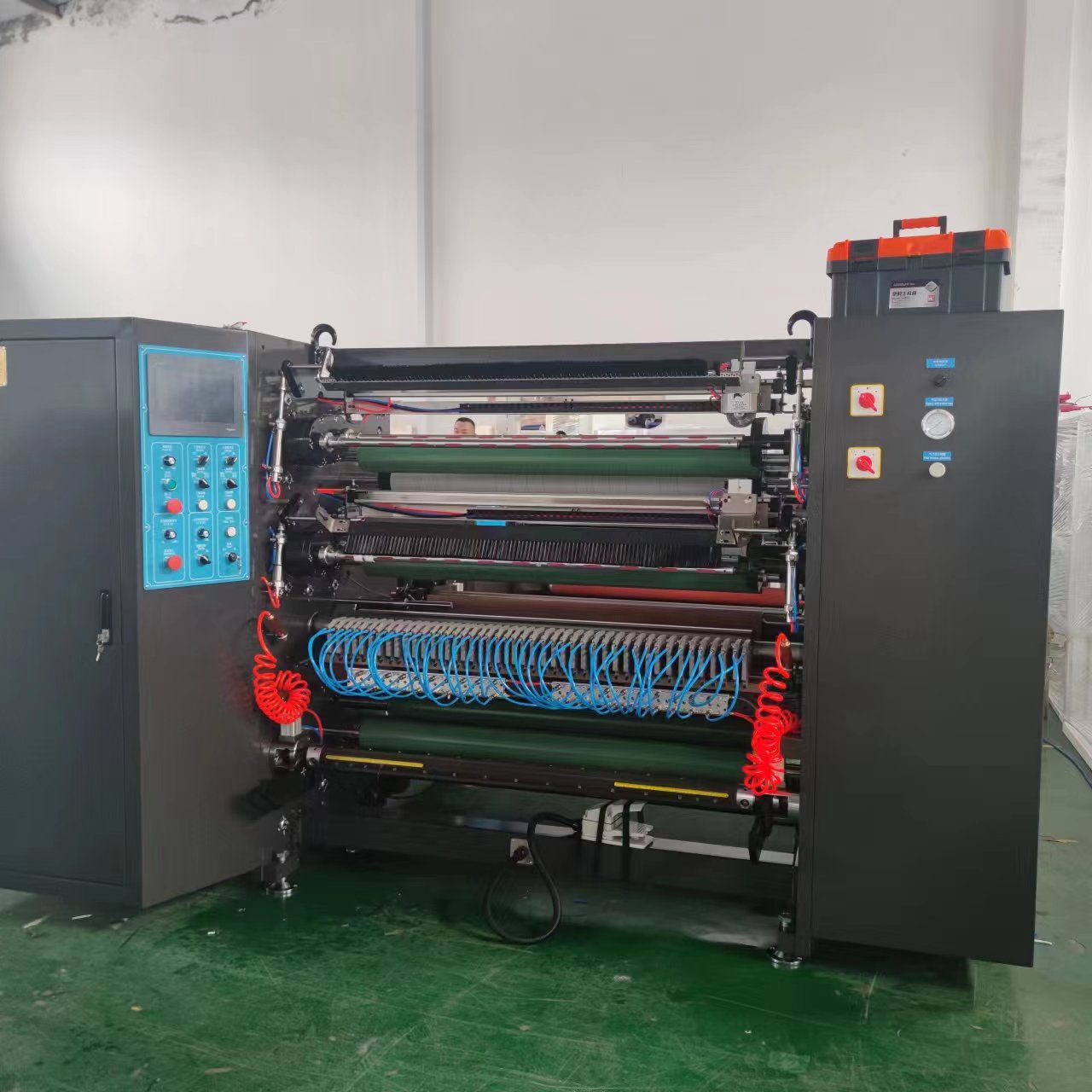

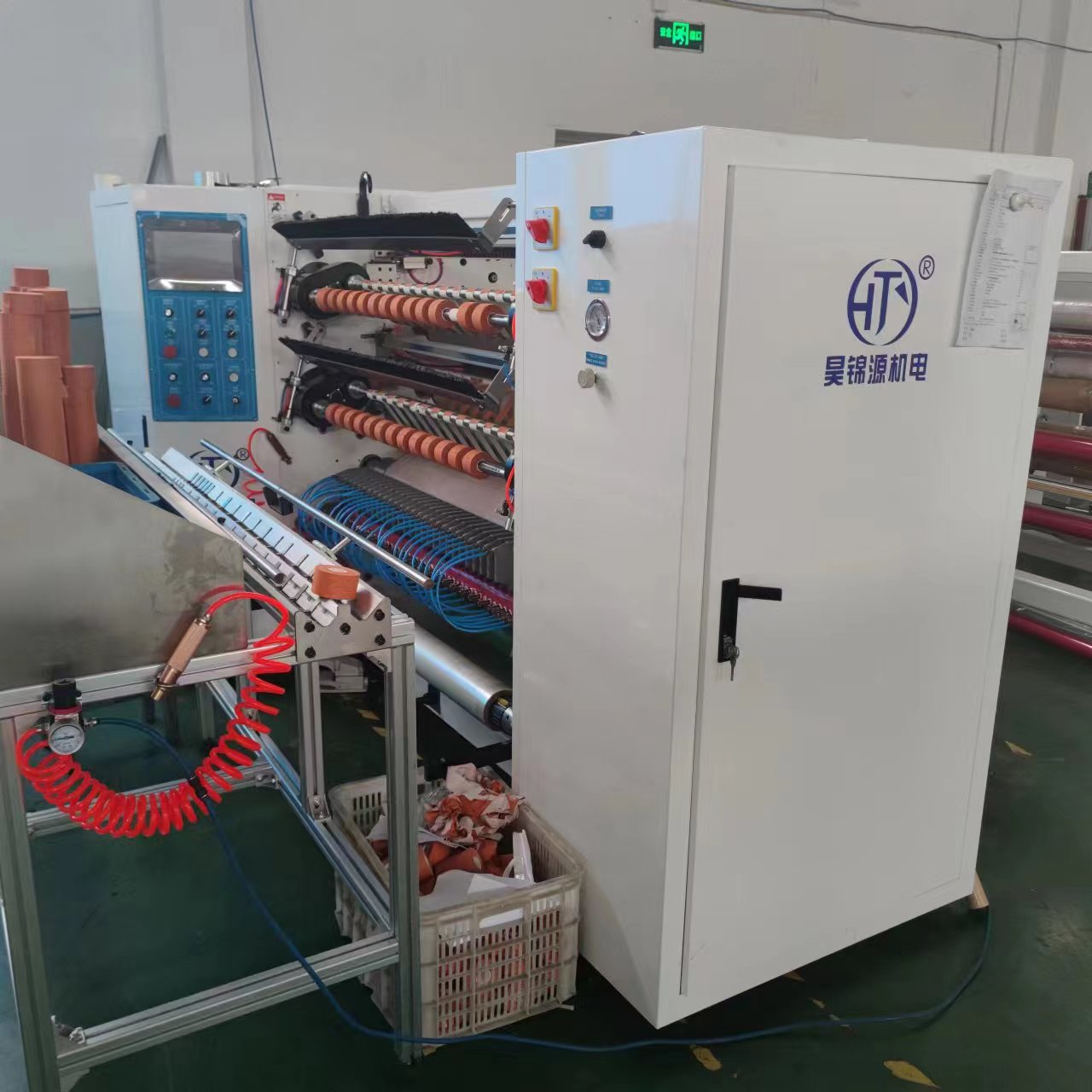

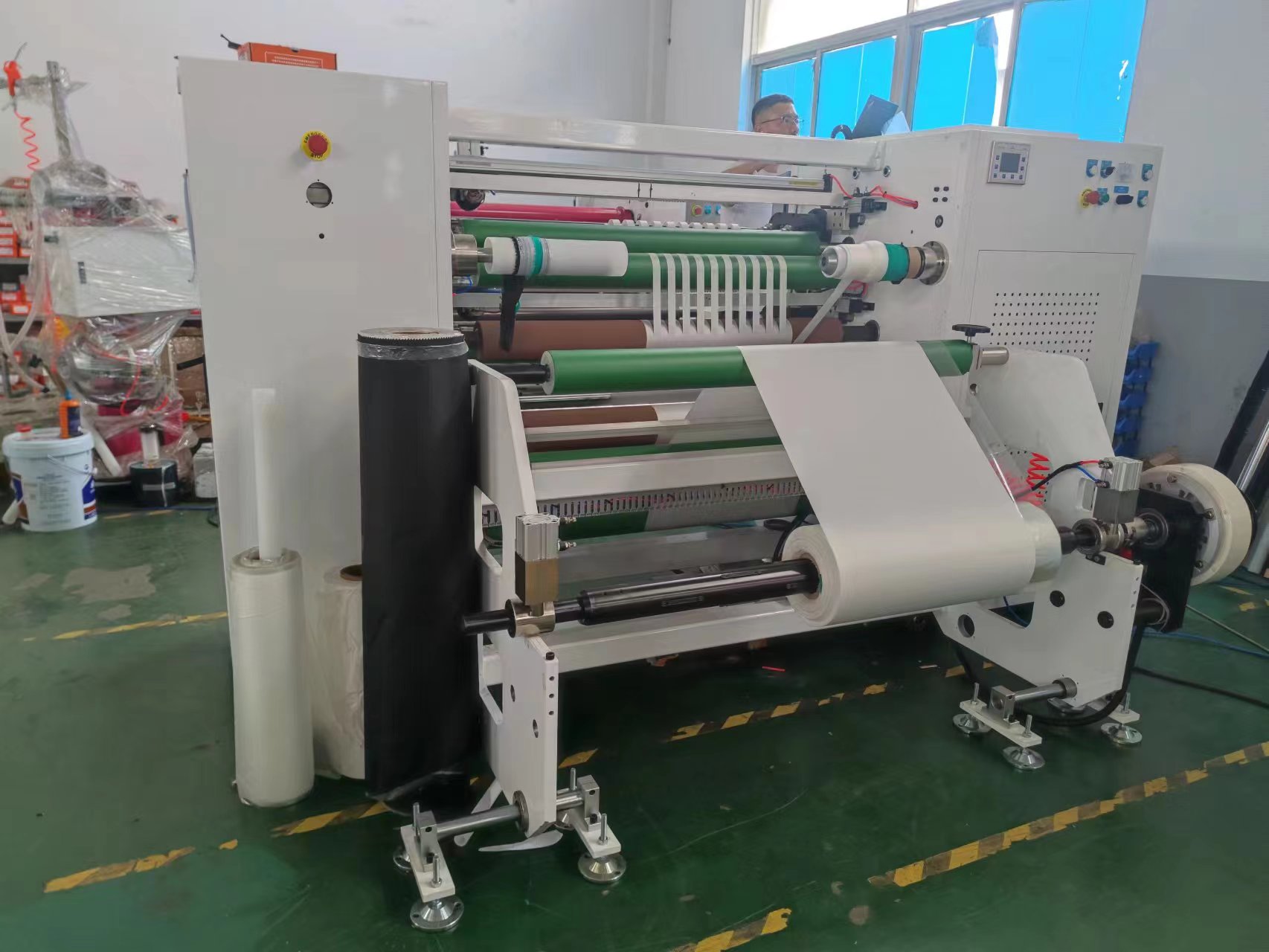

Detail Photos
