HJY-FQ12 Horizontal Double Shafts Slitting And Rewinding Machine

Short Description:

Machine name: HJY-FQ12 Horizontal double shafts slitting and rewinding machine.

Product Detail

Product Tags

Specifications

Machine model	HJY-FQ12
Roller width	800-1800MM
Max rewind diameter	600mm
Max unwind diameter	1000mm
Mini slitting width	15mm
Air Source	5kg
Paper core inner diameter	1.5”-6”
Power source	380V 50HZ 3PHASE(It can be custimized)

Features

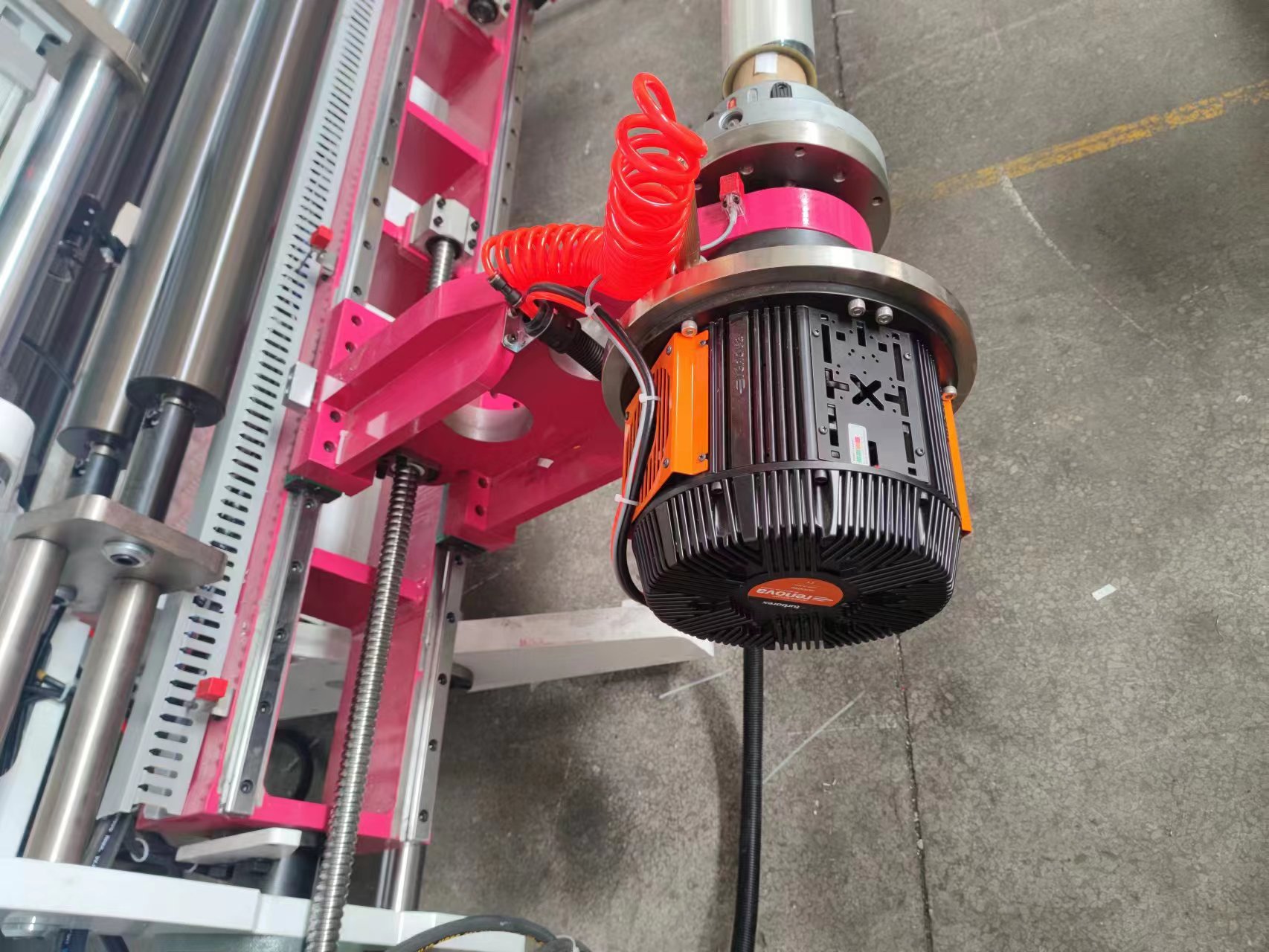

1. Rewind driving part: tri-motor control system(two rewind motors with main motor): main motor separate unwind, rewind motors control tension for stable tension product.

2. Rewind part: rewind shaft arm adopts pneumatic balance control for auto air pressure adjustment. The contact force can be auto set. Discontinuous guider roller rewinding is also optional for wider range of material slitting.

3. Electric control part: interface adopts LCD touch panel for easy setting parameters. Control part uses programmable controller for mechanical running. It has auto detecting system for auto error analyzing.

4. Unwind type: separate unwind base for bigger unwind diameter.

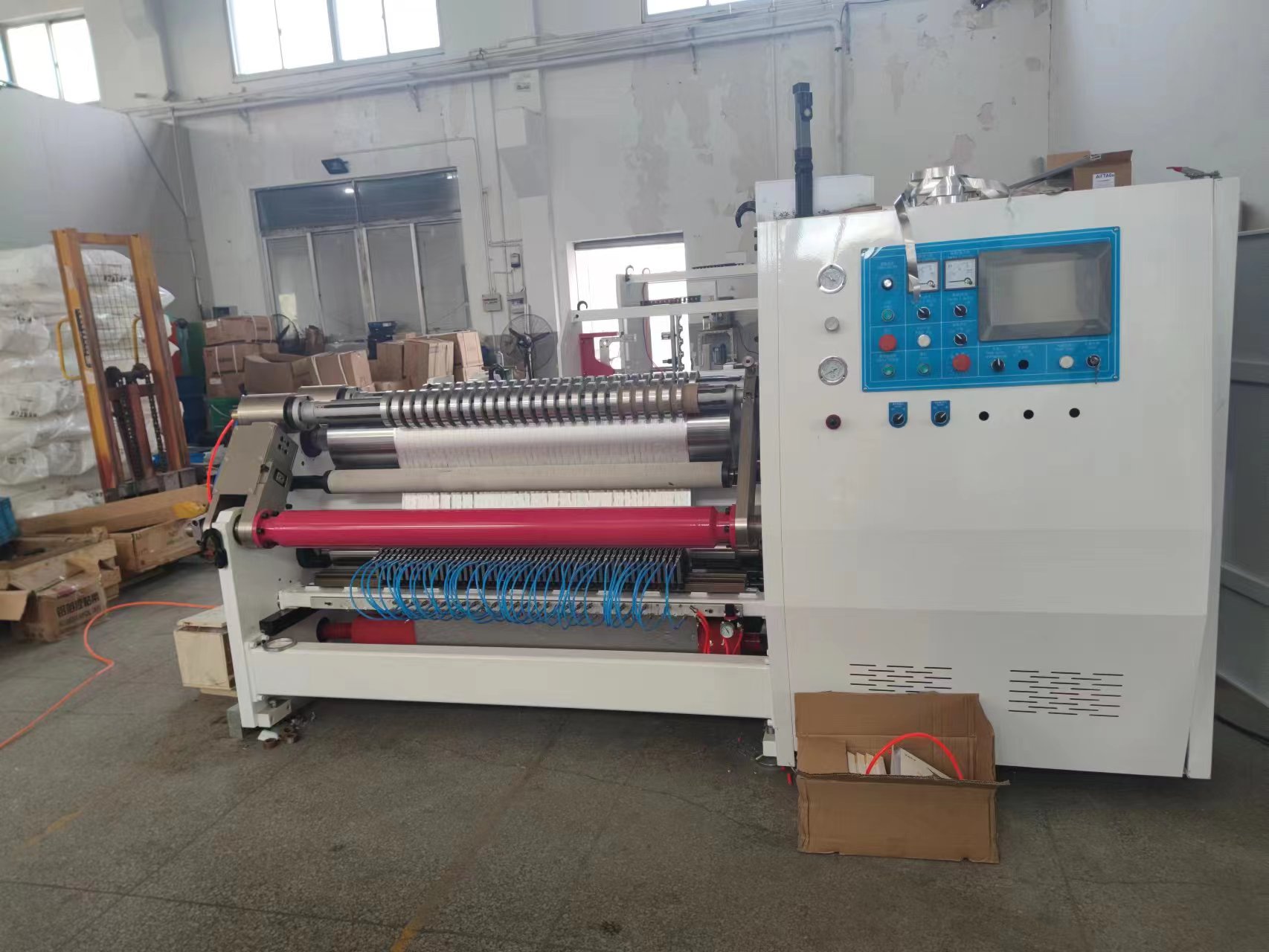

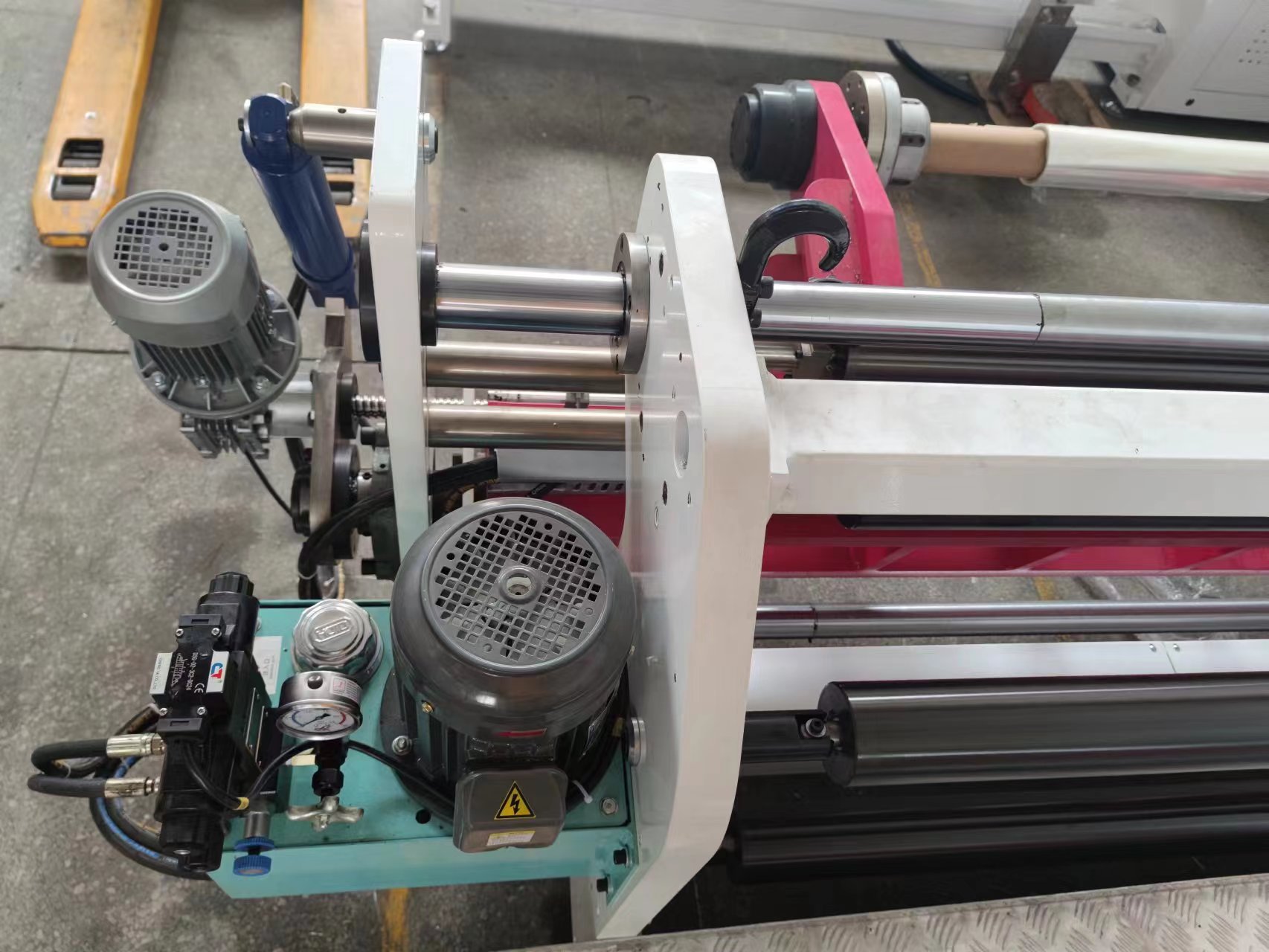

Detail Photos

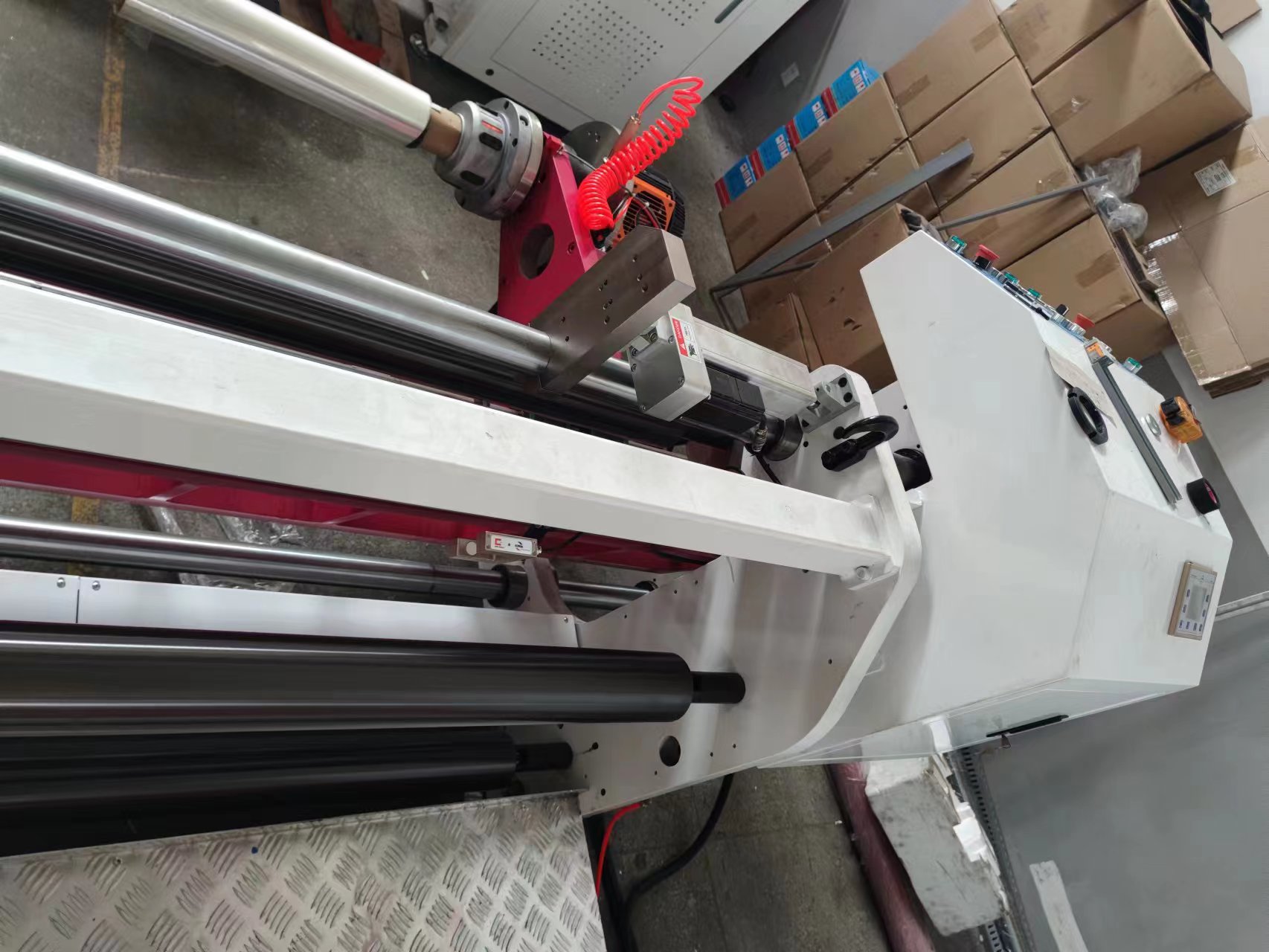

HJY-FQ12 Horizontal Double Shafts Slitting And Rewinding Machine1

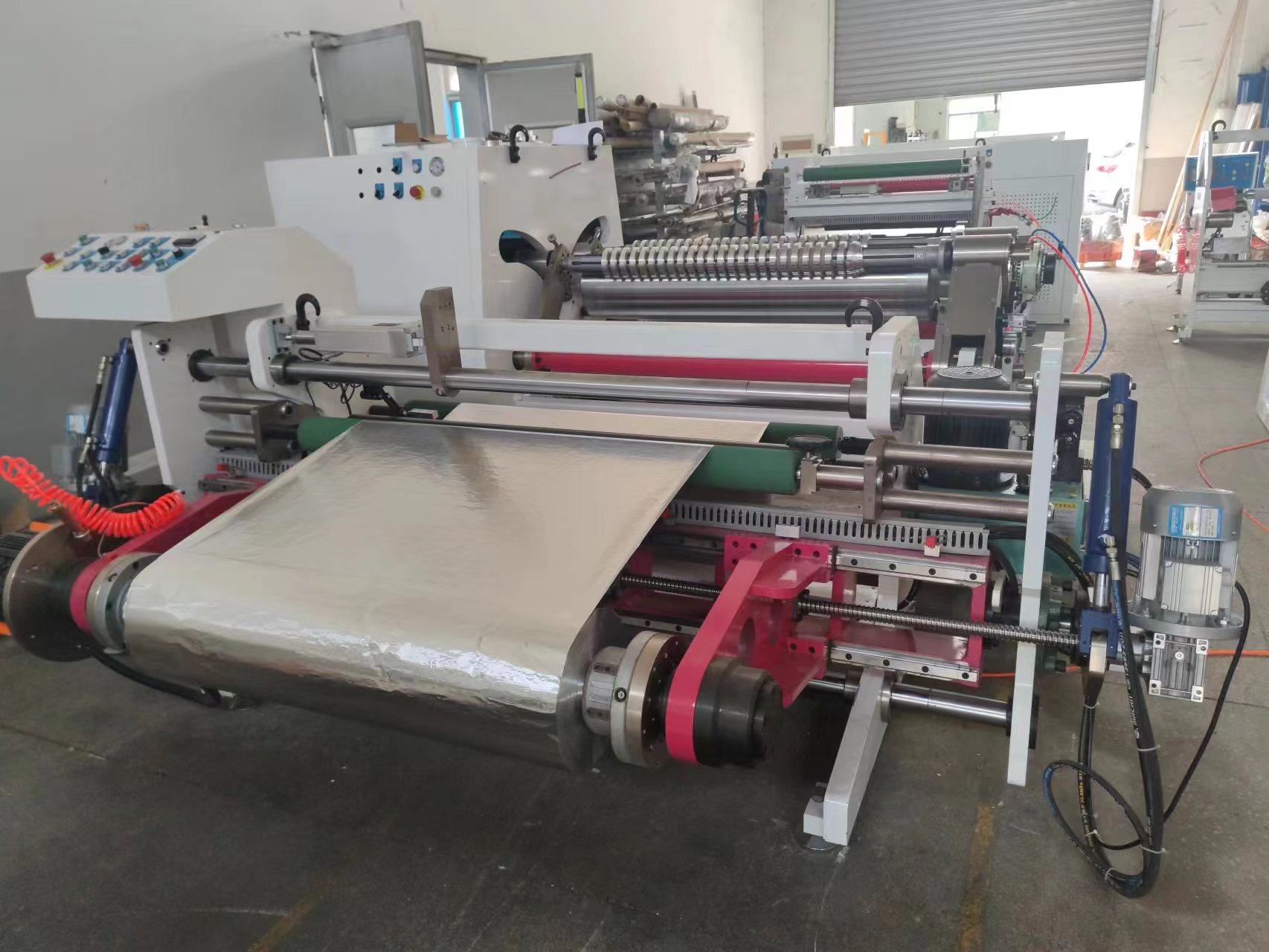

HJY-FQ12 Horizontal Double Shafts Slitting And Rewinding Machine2

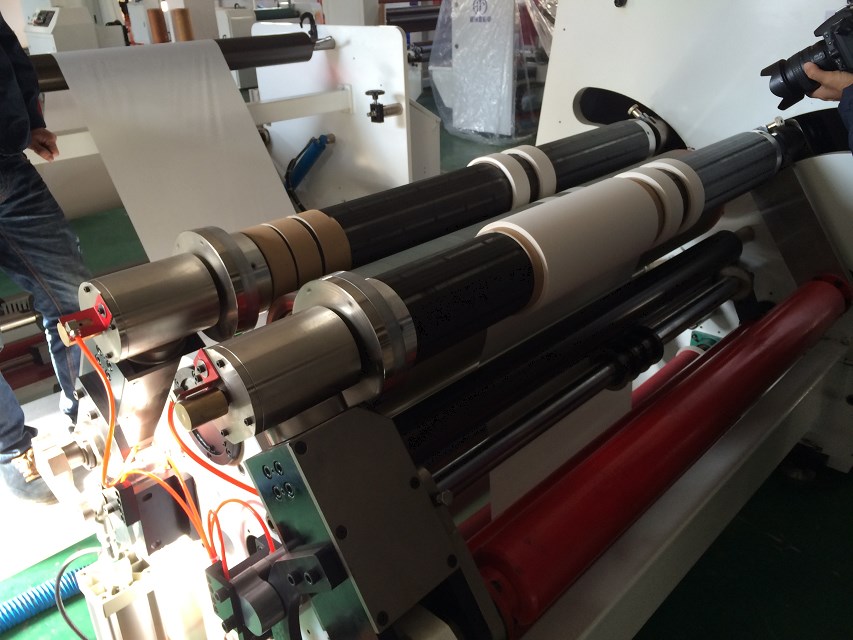

HJY-FQ12 Horizontal Double Shafts Slitting And Rewinding Machine3

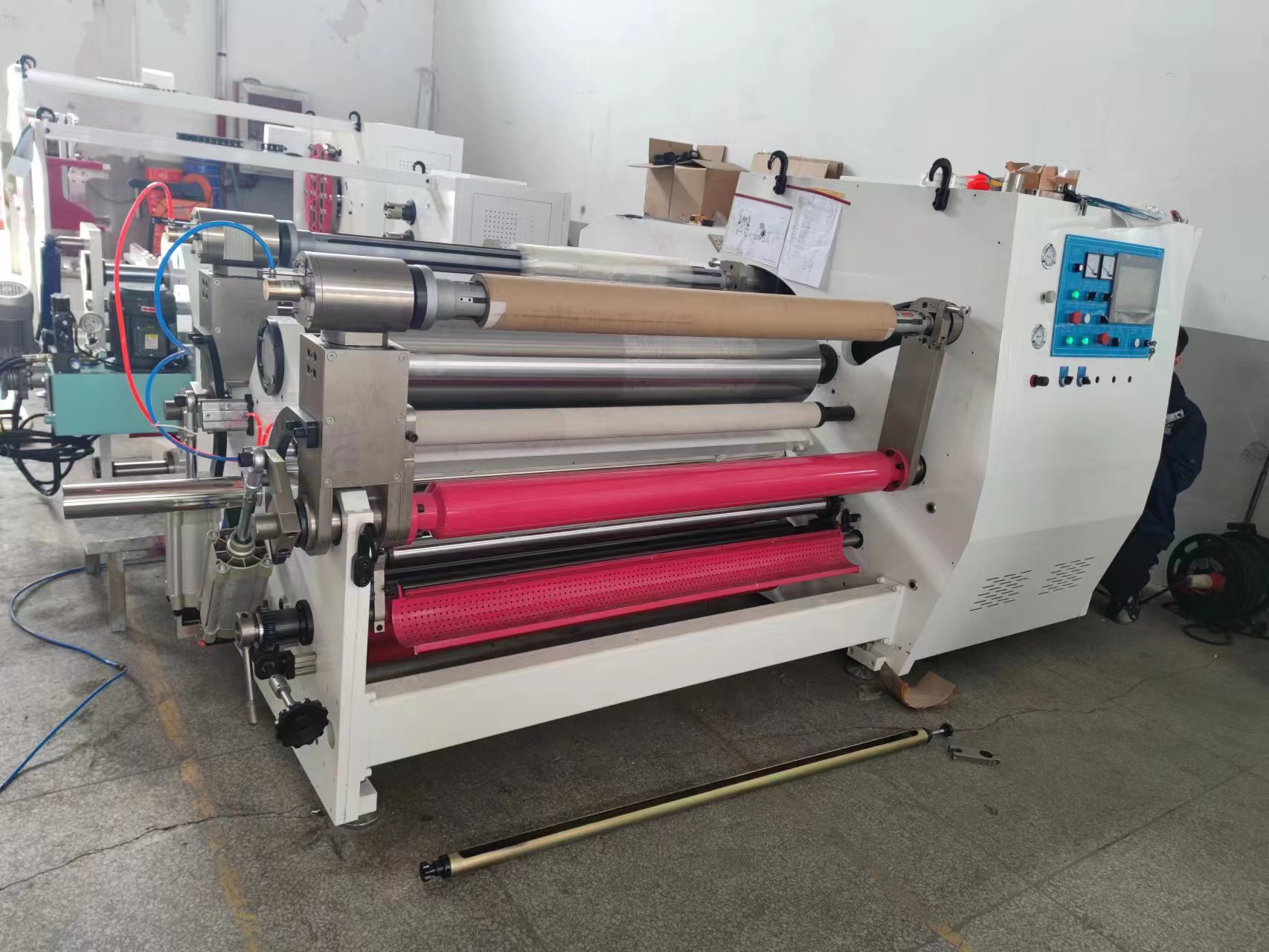

HJY-FQ12 Horizontal Double Shafts Slitting And Rewinding Machine5

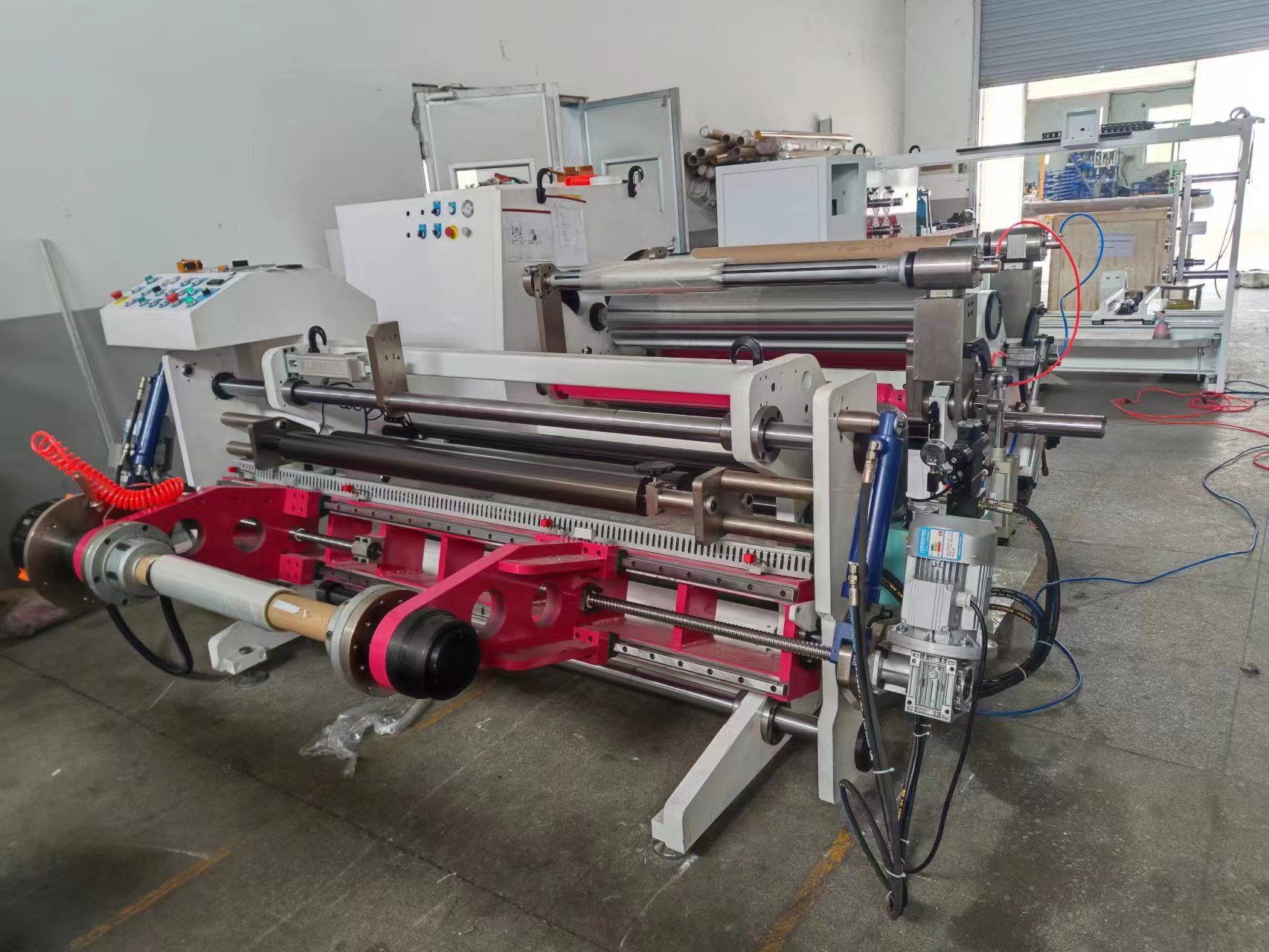

HJY-FQ12 Horizontal Double Shafts Slitting And Rewinding Machine4

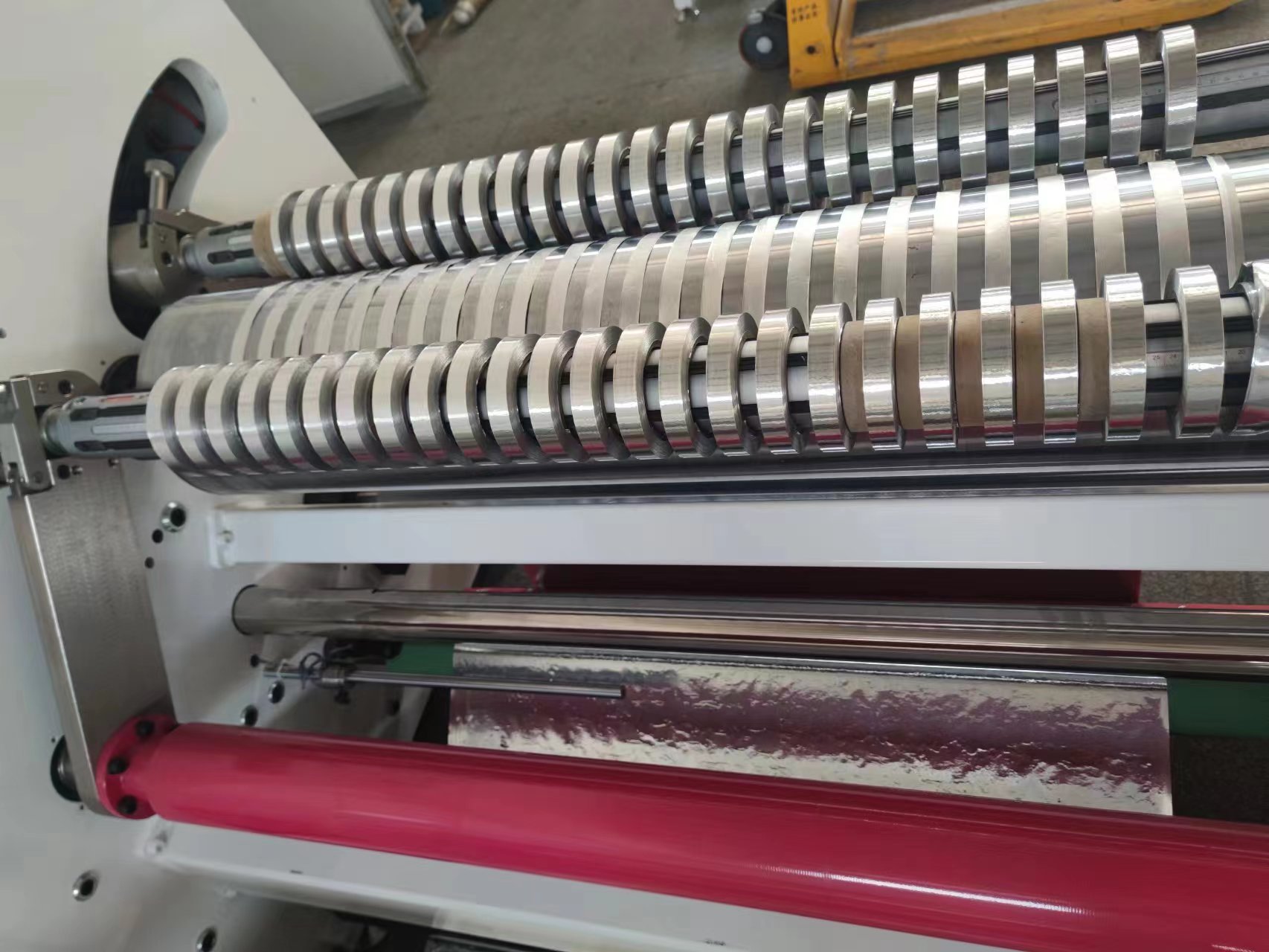

HJY-FQ12 Horizontal Double Shafts Slitting And Rewinding Machine6

Package & Shipping

Package & Shipping: All products will be packed in wooden boxes. We deliver from ShangHai Port.

Payment terms: T/T, 30% deposit after confirm the order, 70% balance paid before shipment.

Time of delivery: Within 30 workdays after receiving your order depoist.

FAQ

1. Are you factory?
Yes! We are the professional manufacturer in China for 10 years. Our engineer has over than 20 experiences in this area.

2. How can I install and operate the machine?
We will delivery machine with user manual in English.If you need, we can provide you online support.

3. Where do your customer from?
Our customer main come from Turkey, Netherland, Dubai, India, Bangladesh, Engiland, Taiwan, Egypt, Korean and so on.
Especially, we have many Turkey and Netherland customers. If you come from the two countries, yon can visit them and belive our quality.
