HJY-FQ15 Kraft paper double shaft slitting rewinding machine

Short Description:

Suitable for big roll label paper, label stock paper, Jumbo semi gloos paper, jumbo thermal top paper, craft papern etc


Product Detail

Product Tags

Specifications

Jumbo roll width effective 1600 mm
Diameter of unwinding roll 1200 mm
Unwinding Inner diameter of paper core 3 inch, 6 inch
Diameter of rewinding roll 1200 mm
Rewinding Inner diameter of paper core 3 inch
Mechanical Slitting speed 10-300 m/min
Tolerance of EPC 0.1 mm
Min.width of produce 20 mm
Total power 13 KW
Weight 2600 Kg
Overall dimension (L x W x H) 4300 mm x 2100 mm x 1700 mm

Application And Features

Application:

Suitable for slitting rewinding stock paper cup paper,kraft paper,rigid paper  jumbo roll into different required widths and diameters.

Features:

Mainmotor: AC motor

Unwind base: seperated shaft type fixed base

Unwind shaft: 3“ core air shaft

Unwind brake: air brake 40kg

Unwind tension: diameter auto calculation

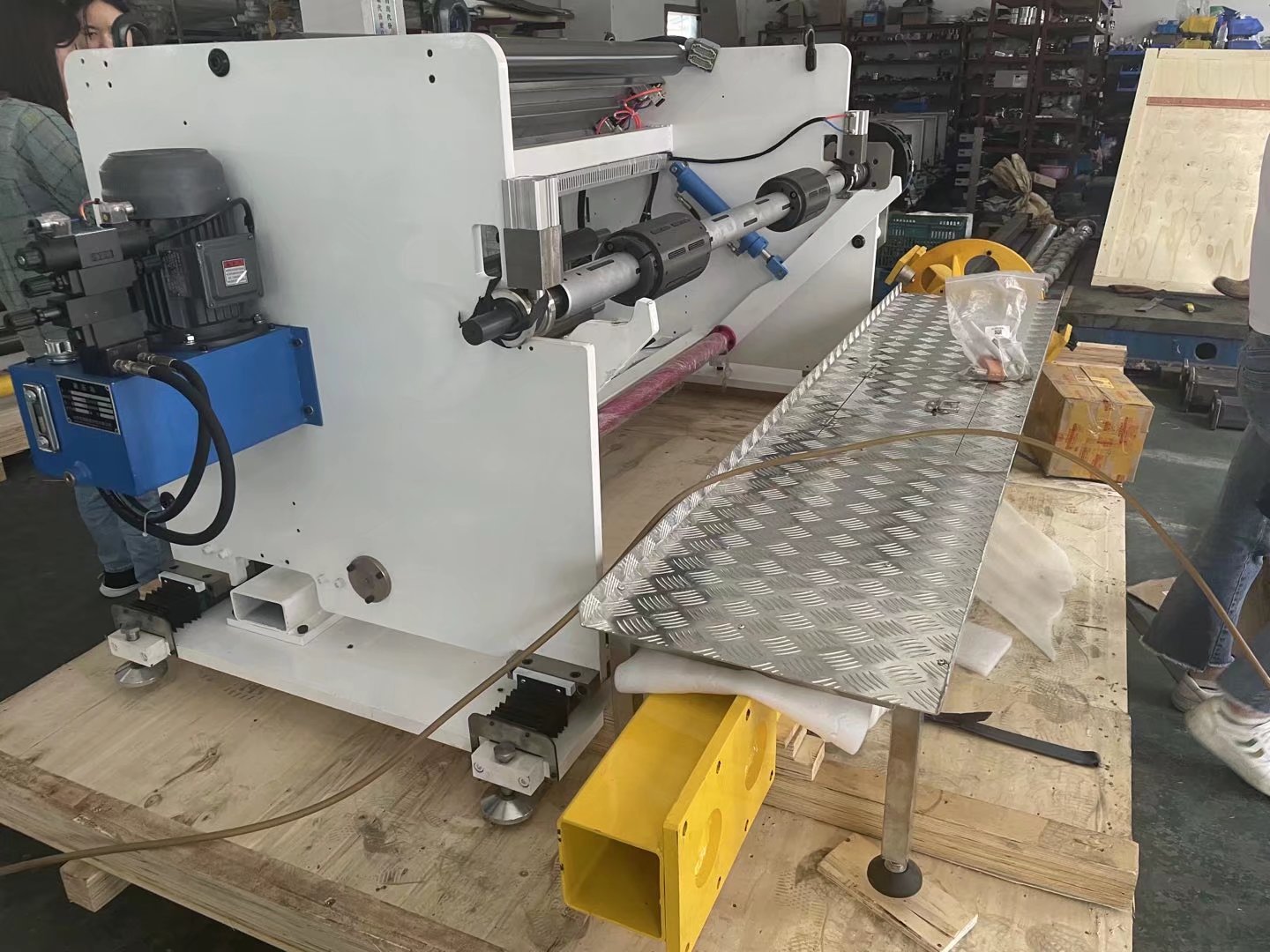

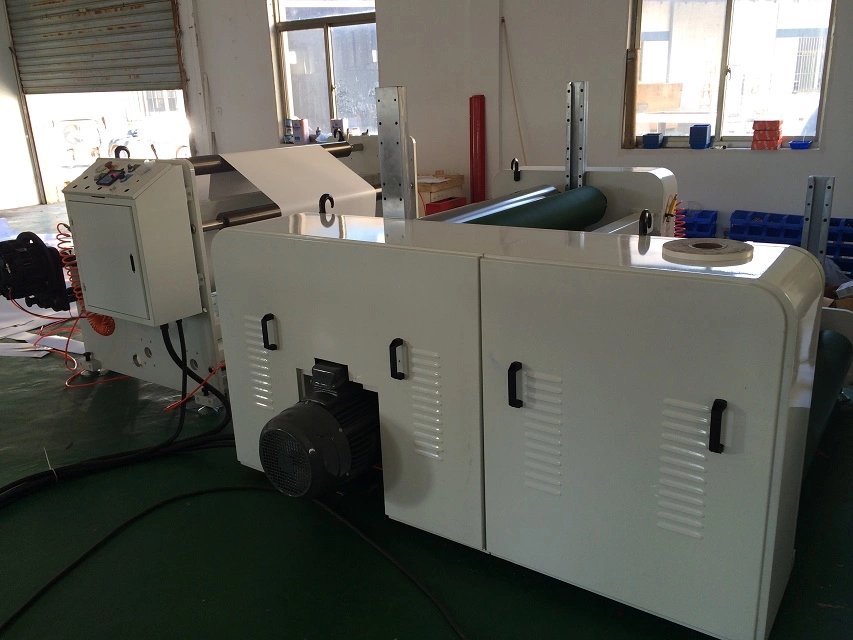

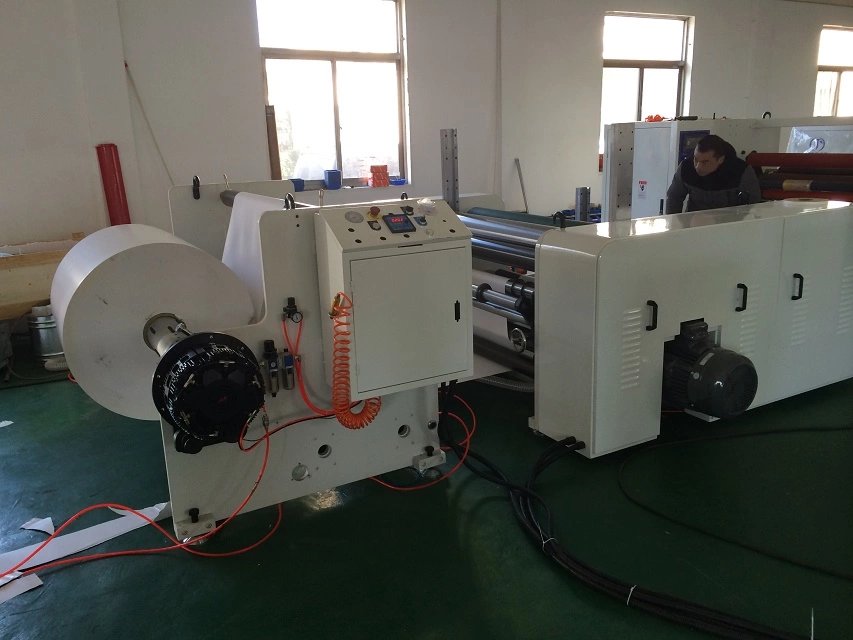

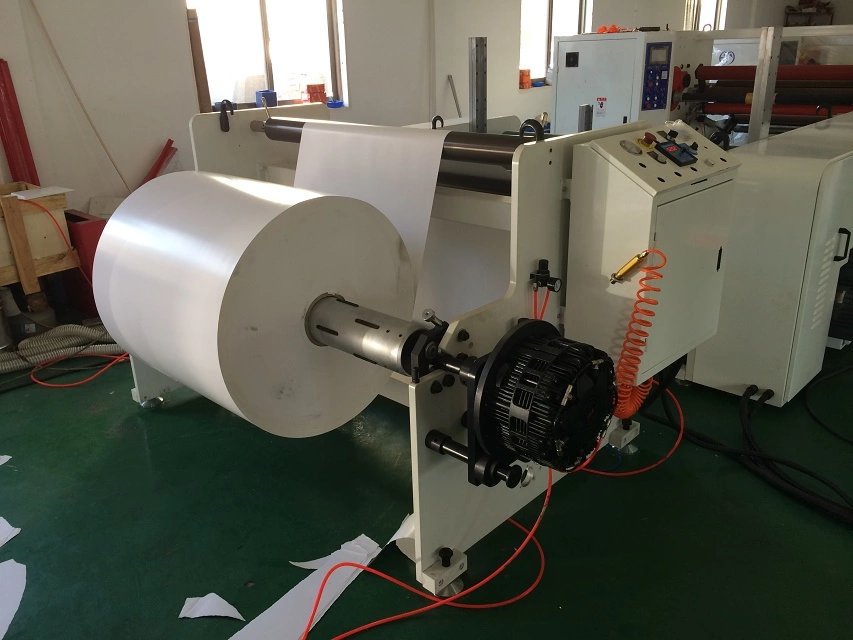

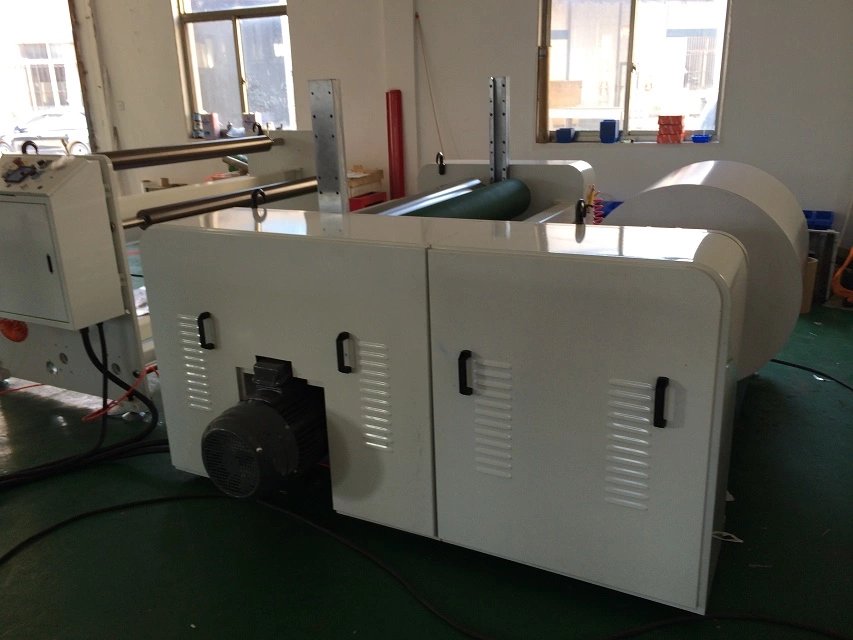

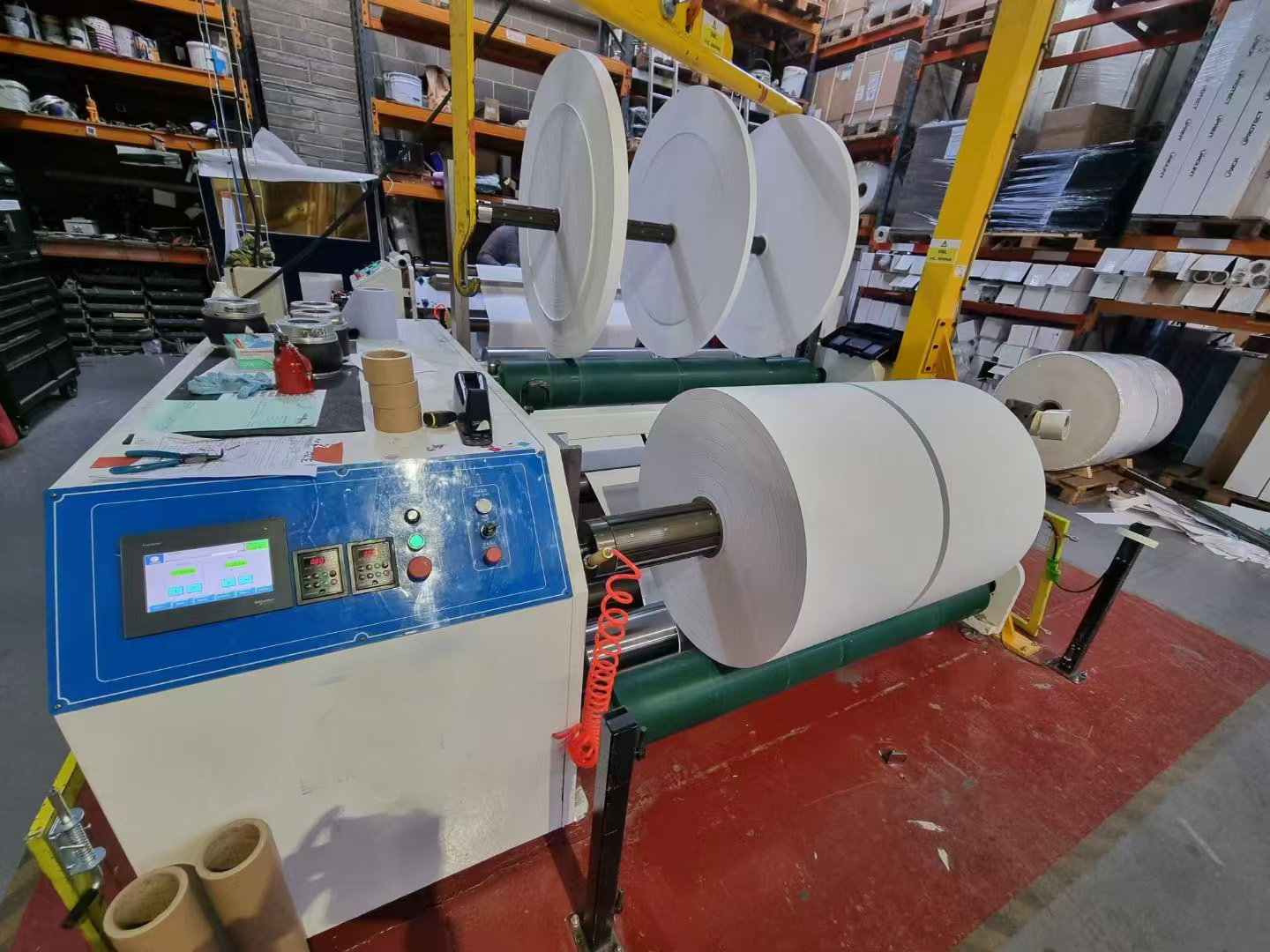

Detail Photos
