HJY-QJ02 Double Shafts Tape Cutting Machine

Short Description:

Double shaft tape cutting machine is suitable for cutting various materials such as BOPP tape, electric insulating tape, masking tape, double or single side tape, cleaning paper tape, kraft paper tape, foam tape, medical tape, duck tape, PVC, OPP, PE, graphite roll, Crepe paper, Adhesive transfer tapes, vinyl logs, Car Vinyl Wrap film, window tint film, Masking tape, Stationery tapes, Packaging tapes,Double Sided tapes, Medicial tapes,Poli-Tape,RTape,Thermal Pad Tape, graphite roll with one side adhesive, bond paper, matte couche, paper semi-gloss paper, thermal transfer paper, direct thermal paper, metallized paper, cardboard paper, thermal cardboard, etc.

Send email to us

Product Detail

Product Tags

Specifications

Machine width	1.1M 1.3M 1.6M
Cutting precision	+/-0.1mm
Max. Cutting O.D.	160mm/230mm
Min. Cutting width	1mm
Inner core I.D.	1"-3"
Optional Parts:
1. Other size cutting shaft	1”-3” shafts are avaible upon request
2. Cutting supporter	For supporting log roll when cutting core below 38mm or 25.4mm
3. Safety cover	To protect operator during the production this is compliant to the CE regulation.

Features

1. Main driving part	Innomotics AC motor with inverter is utilized.
2. Central control unit	Programmable central control is used and 50 sizes can be set on the same shaft for auto roll cutting.
3. Operating panel	All functions are operated on the 10" LCD touch panel.
4. Motor control system	The central control system is PLC programmable controller.
5. Cutting positioning system:	Cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.
6. Blade feeding positioning system	Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages.
7. Auto angle adjustment of circular blade	Mitsubishi servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°).

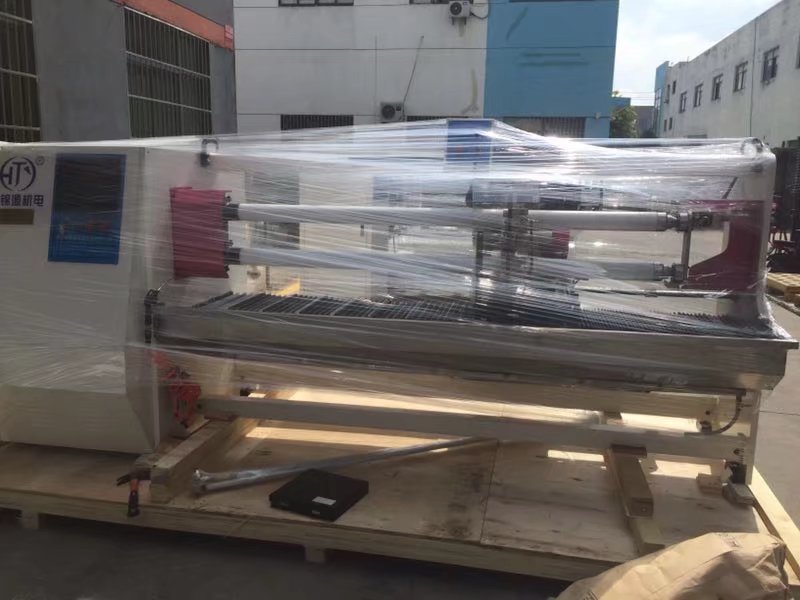

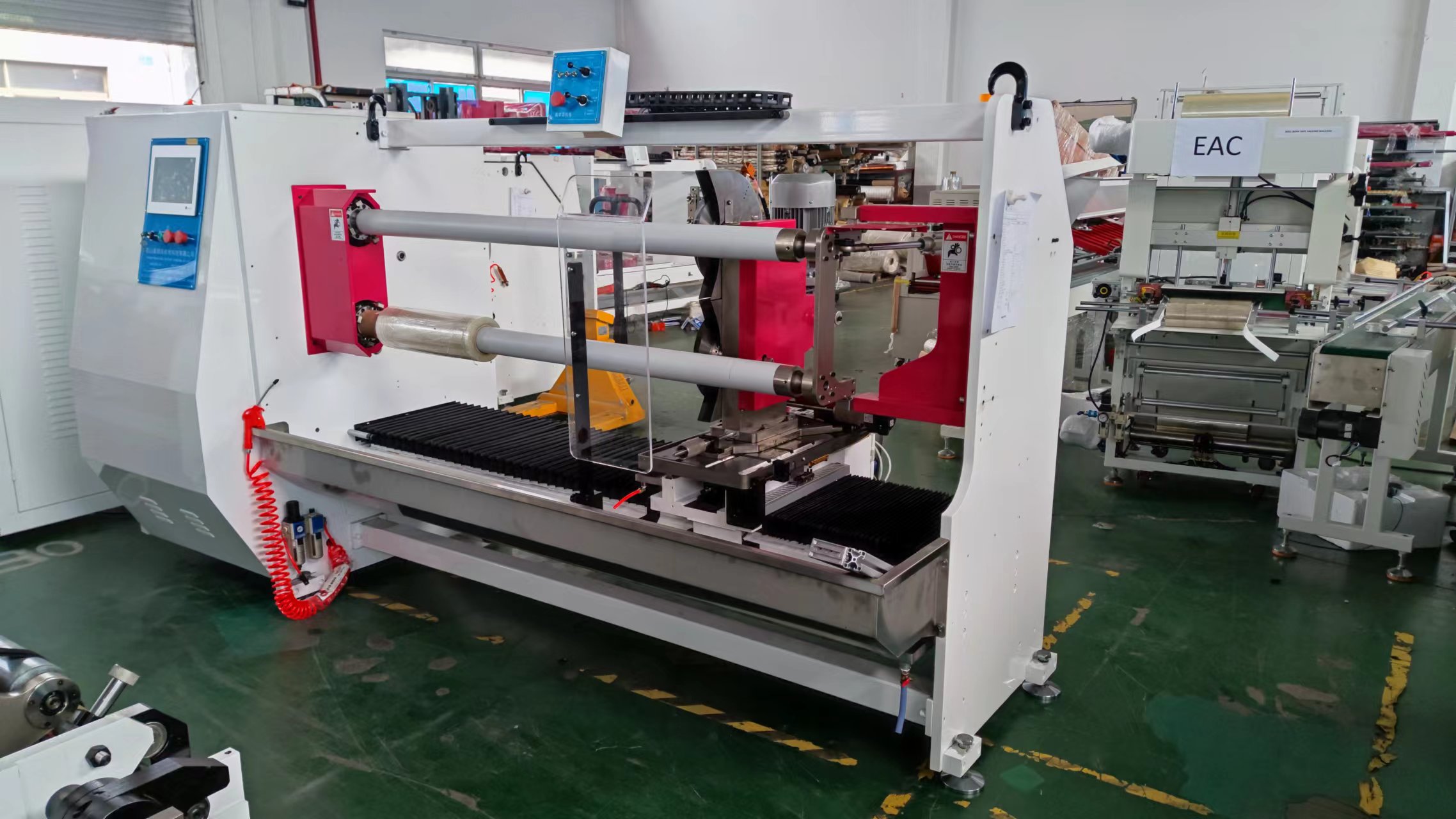

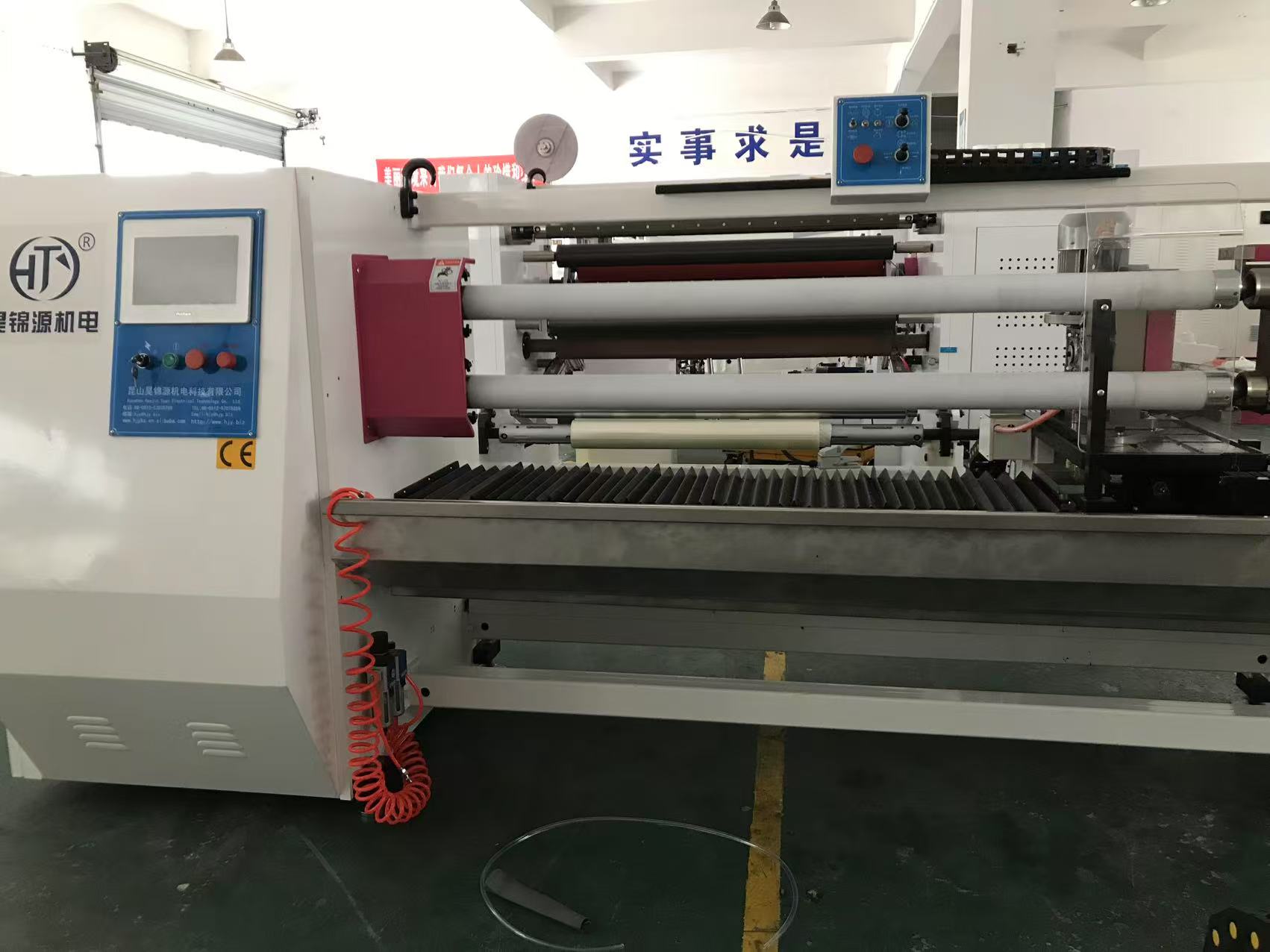

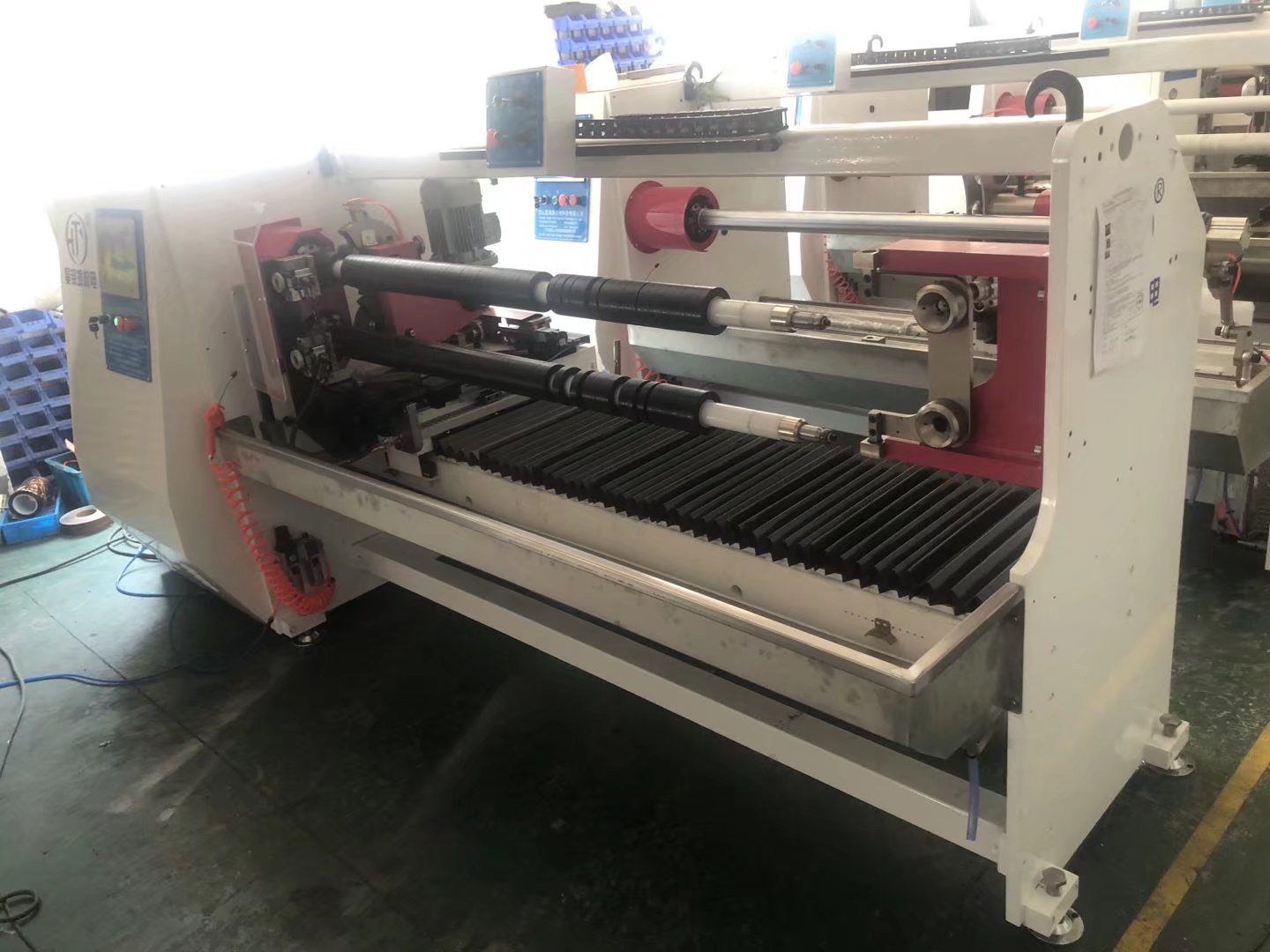

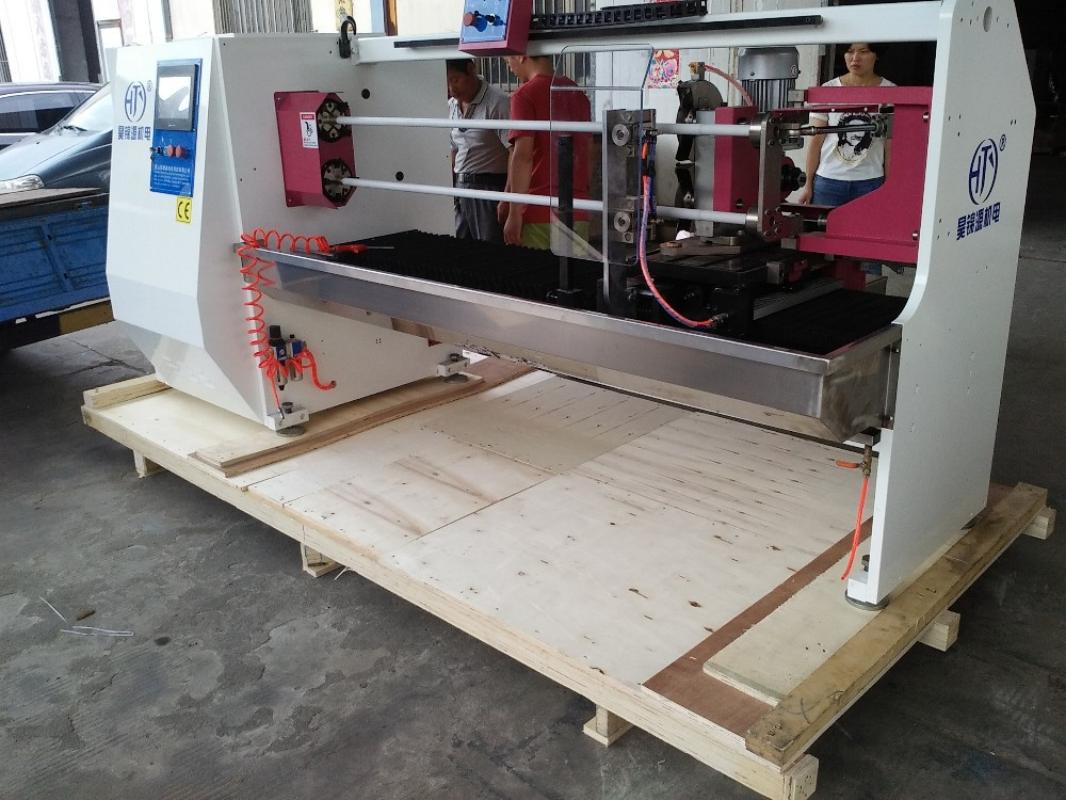

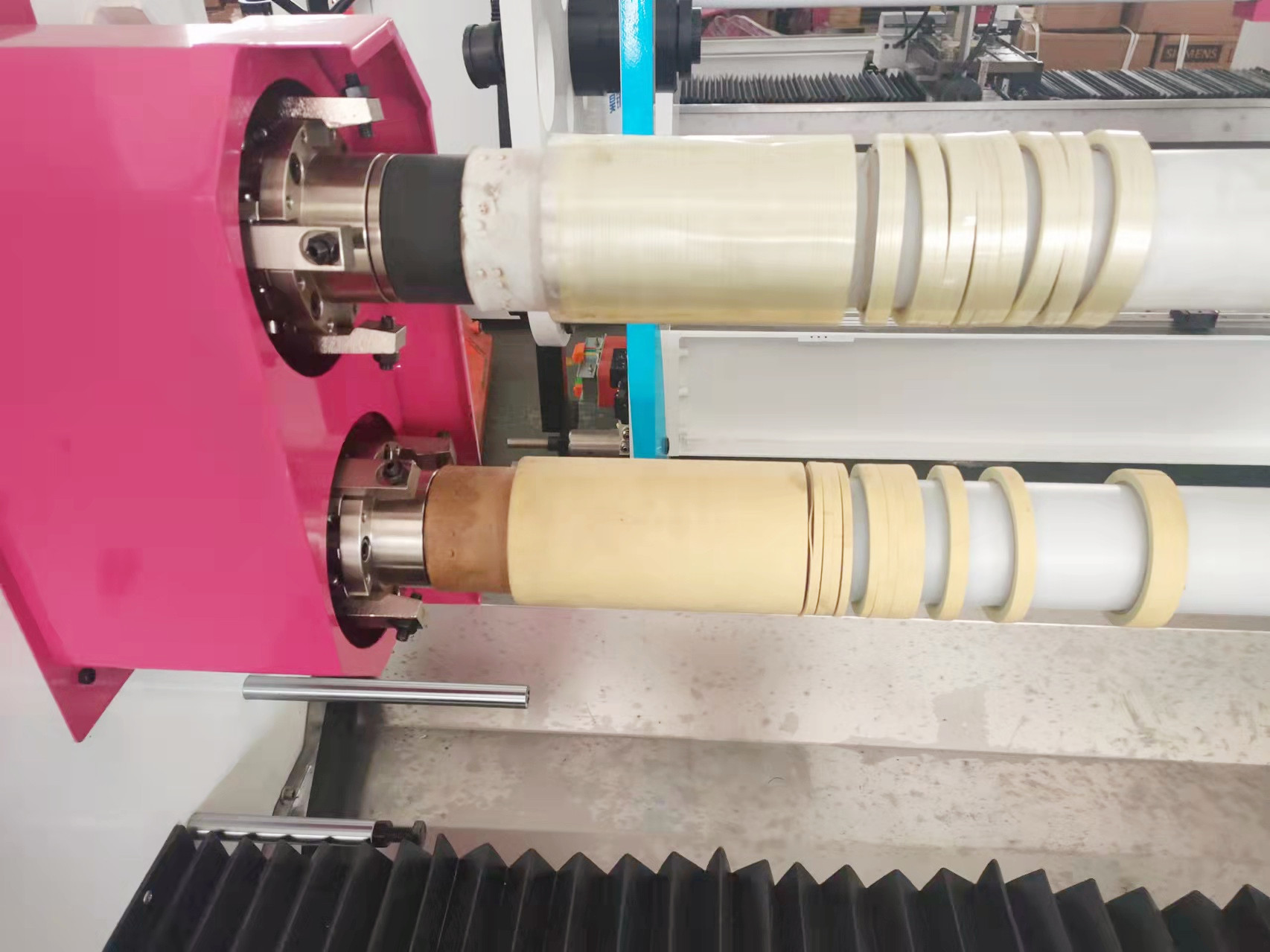

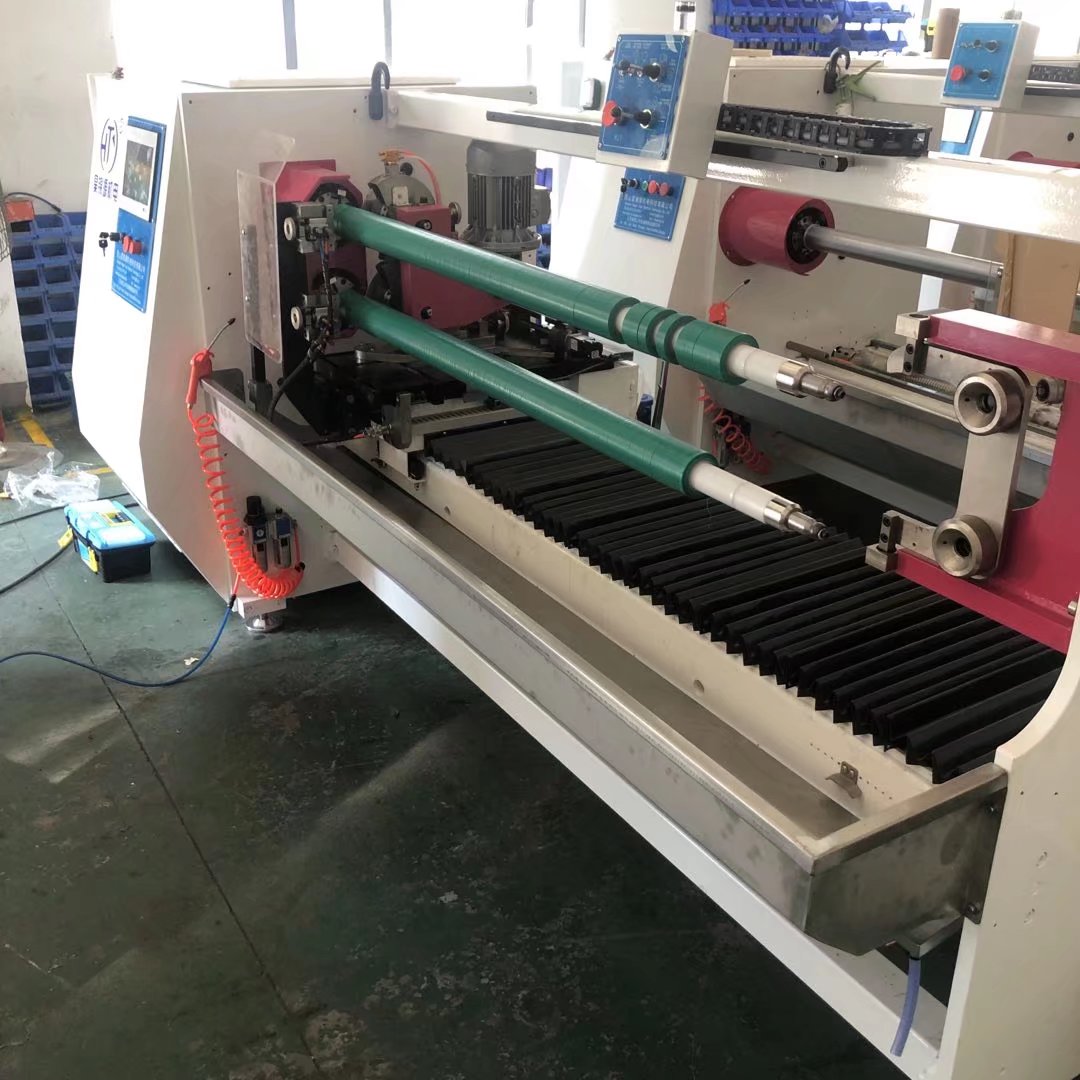

Detail Photos

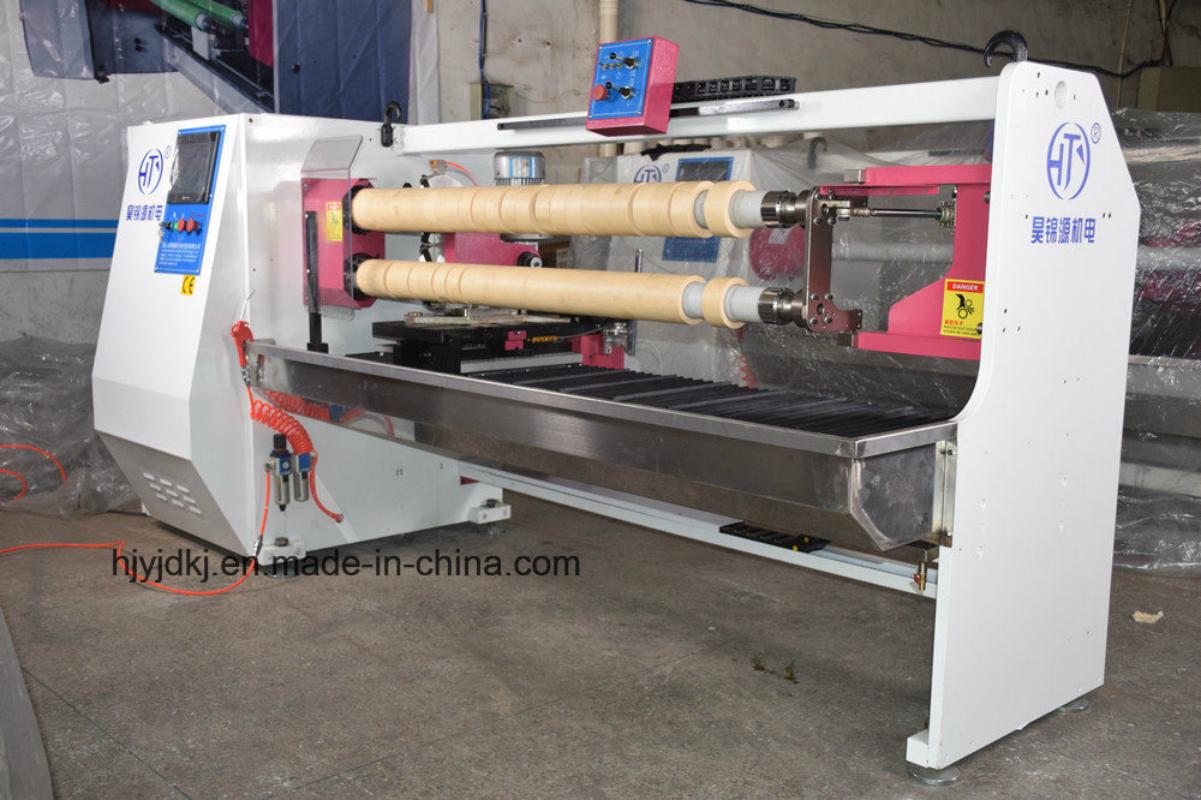

Jumbo-Roll-Tape-Cutter-Machine-Hjy-Qj02(1)

Videos

FAQ

1. Are you factory?
Yes! We are the professional manufacturer in China for 10 years. Welcome to visit our factory.

2. Can I customize according to the requirements of me?
Yes! We can customize according to your requirements.

3. Where is your factory?
We are in No.10, Songhu East Road, Zhangpu Town, Kunshan City, China.

4. If I didn't use press machine before, how can I install and operate the machine?
We will delivery machine with user manual in English.

5.Shall I see the machine work before I order?
1). You may come our factory, we will tell you details about the machine face to face.
2). We may send you video.

Our Advantages

1) Mainly used Europe, Japan, Taiwan brand parts, such as siemens motor, mitsubishi system, Schneider switch, Japan NSK shaft and so on.

2) Our engineers have more than 10 years experience. Professional team provide customers with professional services.

3) Professional sales team. As long as the customer needs, our sales team will be at your service anytime.

4) Perfect after-sales service. If you have any question, please tell us freely. We can give you best service.

5) Rich experience for exporting to many countries. We have many old customers from +many countries, such as America, Netherland, India, Turkey, Russia, Bangladesh, Dubai, Egypt, Mexico and so on. Many of them have been to our factory ever. And we are good friends now.

6) Close location to Shanghai. We are located in KunShan, which city next to ShangHai Port. It is very convenient to deliver.
